US$3.00-11.00
|
500 Meters
(MOQ)
|
Basic Info.
Application
Overhead, Heating, Underground
Conductor Material
Copper
Range of Application
Cold-Resistant
Certification
ISO9001, CE, RoHS
Conductivity
From 15% to 70%
Supply Ability
500000meters Per Month
Transport Package
ABS Spool
Production Capacity
500000
Product Description

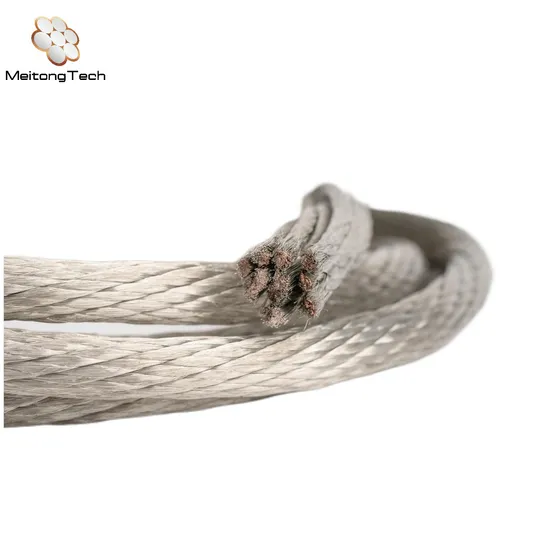

Soft Copper Braided Wire
Application
The copper brush wire and tinned copper brush wire is widely suitable for mannufacturing brush Products,our copper
brush wire is made by high pure cathode copper rod,product proferties is much better than the original one.To solve the
brush pressing sintered at high temperature wire brush brittlet fracture problem.
The copper brush wire products standards:SHFS
The copper brush wire products type:TS,TSX,TSR
Our Advantages
1.Better price-less expensive than copper,reducing costs of material for cable production.
2.Higher conductivity-electrical conductivity much higher than pure aluminum.
3.Lighter weight-easy to transport and install thus saves labor cost.
Product Description
TS,TSX
Standard
section
(mm²) |
Calculating section
mm² | Structure | Calculating
external
diameter
(mm) |
20ºC direct current
resistance(Ω/km) no more than
TJR1 TJRX1 |
Calculating weight
(kg/km) |
Total
qty
of wires | Qty of wires/
Diameter of a
single thread
(mm) |
0.16
0.3
0.3
0.5
0.5
0.75
0.75
1
1.5
2
2.5
3
3.5
4
8
10
12
16 | 0.165
0.306
0.275
0.495
0.495
0.754
0.769
0.989
1.484
1.978
2.528
2.967
3.462
3.956
4.945
5.938
6.967
8.007
10.18
11.94
16.12 | 21
39
35
63
63
96
98
126
189
252
322
378
441
504
630
525
616
708
900
1056
1425 | 3*7/0.10 3*13/0.10 7*5/0.10 3*21/0.10 7*9/0.10 3*32/0.10 7*14/0.10 7*18/0,10
7*2710.10 7*36/0.10 7*46/0.10 7*54/0.10 7*63/0.10
7*7210.10 7*90/0.10 7*75/0.12 7*88/0.12 12*59/0.12 12*75/0.12 12*88/0.12 19*75/0.12 | 0.64
0.95
0.81
1.14
1.11
1.44
1.32
1.50
1.85
2.10
2.45
2.61
2.82
2.91
3.27
3.58
3.89
4.49
4.96
5.38
5.97 | 112.42
60.62
67.45
37.47
37.47
24.60
24.12
18.76
12.50
9.38
7.34
6.25
5.36
4.69
3.75
3.12
2.66
2.32
1.82
1.55
1.15 | 118.48
63.89
71.09
39.49
39.49
25.93
25.42
19.77
13.17
9.88
7.73
6.59
5.65
4.95
3.94
3.29
2.81
2.44
1.92
1.64
1.21 | 1.6
3.0
2.7
4.9
4.9
7.5
7.7
9.9
15
19.7
25.2
29.7
34.6
39.5
49.5
59.4
69.6
80
101
119
161 |
Package Details
| NO. | DIN130MM | DIN185MM | DIN250MM | DIN400MM | DIN800MM |
| A | 130MM | 185MM | 250MM | 400MM | 800MM |
| B | 65MM | 130MM | 160MM | 160MM | 370MM |
| C | 100MM | 160MM | 160MM | 260MM | 490MM |
| D | 120MM | 180MM | 200MM | 290MM | 520MM |
| E | 21MM | 31MM | 31MM | 56MM | 126MM |
Ramk:Can be customized
Certifications
Production Facility
Quality Control Centre
FAQ
Do you accept OEM or ODM?
Of course.We also have a professional design team who can assistant you to design.
What is minimum order quantity?
Usually accept 500 kgs for trial order , it is depended on different items with different materials and sizes.Please kindly contact us for details! Thanks!
What is your sample policy?
1.Paid samples are available as per requirement and specifications.Usually we only charge $50/time,usually within 10kgs.
2.Sample will be sent to you by express with freight collect, so please inform us your courier account number,or you can prepay to us the express cost which we have best channel lower to 70% discount.
What certification do you have?
Our product has passed the ISO certificate.Quality management system,American needed certification,also complete the BSCl audits.And some other needed third party test report and certifications.
What information should I let you know if i want to get a quote?
Please offer the specification of the product if possible.Such as material,logo color,size, content list, quantity.etc.Or contact us directly just by a thought.
What is the delivery date?
Our products are normally shipped about 25 days after order confirmation. But it may take longer or shorter up to different order quantity.
How can I know order status?
We will acknowledge receipt of your order by e-mail. Some further emails will be sent to you to check about the production details of your goods by specific sales assistant. We will contact you if we have any queries about productions .lf you don't receive any email from us, which means your production goes smoothly and will be shipped as our contract. You can also contact us if you have any question. PP sample photos will send to you before we produce,Bulk sample photo wil send to you before we ship.
>>
