Big Output, High Quality PP and PS Single Screw Sheet Extruder Plastic Sheet Extrusion Line in Sale

Product Description

PPSJ series Extrusion designed for high plasticizing high yield and a variety for productions requirements,equipped with well-known brands parts ensure efficiency and stability.
Suitable for produce various plastic sheet of PP, HIPS etc, which can be widely used for plastic packing products industry.
Features:
1. Optimize design,easy operation and maintenance.
2. High degree of automation,man-interface for easy operation.
3. Screw with good plasticizing and high output after optimize design.
4. Extrusion Non-stop production.
5. Spiral groove design of calender roller with good cooling.
6. Calender design with independent temperature controller system.
7. Dragon type rewinder with maximum sheeting rolling diameter 1500mm.
Main Technical Parameter:

1	Model	PPSJ-100	PPSJ-120	PPSJ-150
2	Industry Voltage	380V, 50HZ (3-Phase, 4-Wires)
3	Suitable Material	PP, HIPS	PP, HIPS	PP, HIPS
4	Main Extruder Dia.	100mm	120mm	150mm
5	Screw L/D	33:1	33:1	33:1
6	Max. Capacity (PS)	300kg/h	520kg/h	800kg/h
7	Extruding Motor Power	75kw	132kw	200kw
8	Max. Sheet Width	750mm	750mm	850mm
9	Valid T-die Width	850mm	850mm	1000mm
10	Sheet Thickness Range	0.3-0.2mm	0.3-2.5mm	0.4-2.5mm
11	Roller Diameter	400X1000mm	500X1000mm	600X1200mm
12	Machine Installed Power	160kw	220kw	350kw
13	Overall Dimension	14X2.5X4m	15X3X4.5m	64X3.5X4.8m

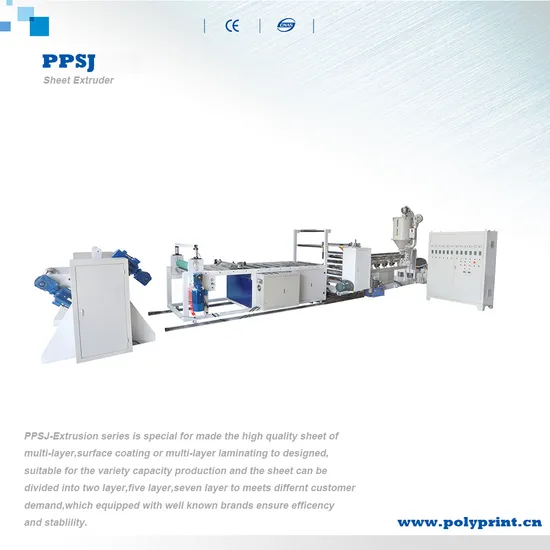

Machine Picture:
Our Services:
1.Warranty:1 year warranty after installation, if the spare parts is broken in the warranty period, we will send a free replacement parts as free.
2.Installation and training: we can send 1-2 engineers to install and set up the machine, but all the charges should be paid by buyer.
3.Quotation: valid for 60 days.
Packaging Shipping:
Company Information:
Polyprint Machinery is one of the first company specialized in manufacturing extruder, thermoforming machine, plastic cup making machine, lid forming machine, cup lip curling machine and cup packing machine since 2006.

---
