| US$6,300.00 | 1 Piece (MOQ) |

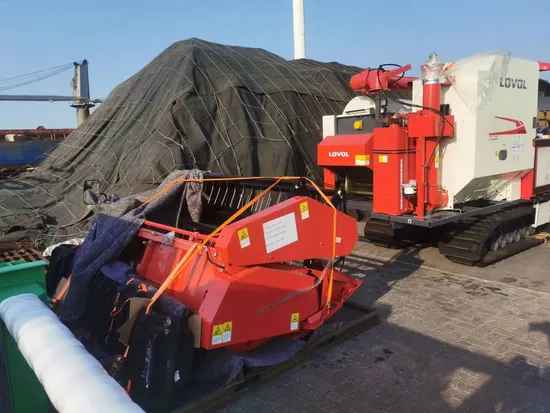

| Lovol Full Feeding Combine Hrvester AF108 | ||||
| Product Model | AF108 | |||
| Overall dimensions | Length(mm) | 5160 | ||
| Width(mm) | 2610 | |||
| Height(mm) | 2750 | |||
| Weight(kg) | 2970 | |||
| Engine | Model | Dachai-DEUT ZCA498Z-10T2/01 | ||
| Structure type | Four-stroke,water-cooled, turbocharged diesel engine | |||
| Rated power(kW) | 74/100HP | |||
| Rated speed(rpm) | 2400 | |||
| Fuel type | Diesel(0#) | |||
| Fuel tank(L) | 95 | |||
| Walking part | Track | Specification link | 500*90*53 | |
| Min ground clearance(mm) | 325 | |||
| Gearbox type | HST | |||
| Transmission type | (HST+3-gear) continuously variable-speed | |||
| Theoretical traveling speed(km/h) | Low speed 0-3.96,Standard 0-5.14, Walk speed 0-7.37 | |||
| Header system | Header width(mm) | 2000 | ||
| Threshing part | Threshing type | Vertical type axial-flow bar tooth type | ||
| Threshing cylinder | Outer diameter(mm) | φ620*1954 | ||
| Rotate speed(r/min) | 580 | |||
| Grain unloading part | Grain tank capacity(L) | 1400 | ||
| Unloading grain rotation range(Degree) | / | |||
| Unloading grain height range(mm) | / | |||
| Electrolyte and others | Battery | Voltage(V) | Rotation driving system | |
| Starting relay | Rated current(A) | 50 | ||
| Vilotage(V) | 12 | |||
| Hydulic oil tank volume | 21 | |||
| Hourly production(hm2/h)(Vertical dry field crops environment) | 0.3-0.7 | |||
