US$19,999.00-49,999.00
|
1 set/sets
(MOQ)
|
Basic Info.
Model NO.
LC-230CNC-3000W
Application
Environmental Equipment, Petroleum Machinery Manufacturing, Aerospace Industry, Automotive Industry, Furniture, Sports, Medical Equipment
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Laser Classification
Fiber Laser
Laser Technology
Laser Fusion Cutting
Name
Fiber Laser Pipe Cutting Machine
Length Range
No More Than 6200mm
Feature
Economical, Short Tailing, Efficient, High Speed
Cutting Pipe Shape
Round(15-160mm) /Square(15*15-110*110mm)
Cutting Material
Stainless/Carbon Steel, Aluminum, Copper, Iron
Voltage
380V 50Hz 3phase (Can Be Customized)
Transport Package
Wooden Case
Specification
9050*2600*2380mm
Production Capacity
500 Pieces/Year
Packaging & Delivery
Package Size
5500.00cm * 2200.00cm * 1800.00cm
Package Gross Weight
3000.000kg
Product Description
Product Description

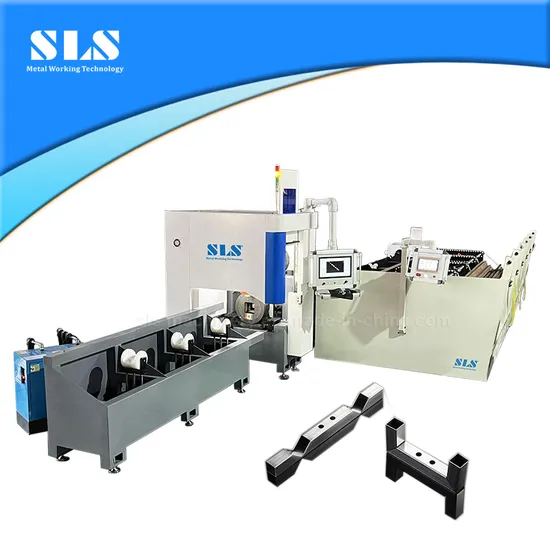

Automatic Blanking and Feeding Equipment All New Type Metal CNC Fiber Laser Tube Pipe Cutting Machine
Brief Introduction on Fiber Laser Pipe Cutting Machine
SLS of Automatic Blanking and Feeding Equipment All New Type Metal CNC Fiber Laser Tube Pipe Cutting Machine,
Application:Furniture, Auto Parts, Fitnessequipment, Medical Treatment, Sanitary Ware, Hardware Accessories, Etc.
It is capable of cutting various types of metal materials such as stainless metal, mild steel, carbon steel etc.
The effect and speed depends on the material and the thickness of it.
Because of the continuous improvement of social living standards, consumers have put forward more requirements on the appearance quality and style of products. Traditional cutting ways have not succeeded to meeting the modern market demand. The application of laser cutting technology not only improves the working efficiency of processing, but also makes the procedure more delicate.
We adhere to the quality as the principle, to create high-end first-class laser cutting equipment.And can customize a variety of auxiliary functions for you to achieve efficient industry 4.0 services, your satisfaction will be our greatest pursuit.
Choose our machine, is to choose the right, choose success!
Features on Fiber Laser Pipe Cutting Machine Super high speed pipe fiber laser cutting machine!
Compared with the universal laser cutting machine, The cutting speed is30% higher!
Machine acceleration up to 1.5G.
Multifunction cutting for round, square, rectangle and oval pipes!
It can straight cut, angle cut, make holes, etc.
Smooth and burr-free cutting.
Cutting loss 0.1mm/cut only.
Excellent cutting accuracy ±1mm.
Full pneumatic chuck, professional pipe cutting.
The chuck adopts a four-jaw hollow rotary pneumatic chuck, its speed can reach more than 150 revolutions.
Fast clamping response time to protect and avoid pinching the pipe.
Roller feeding, More feeding rollers clamp the pipe, feeding cycle does not need to be reset, reducing the waiting time and greatly improving the cutting efficiency.
Simultaneously loadingand cutting.
Self-developed control system, deep optimization, fast response, easy operation.
Main Technical Parameters
Model: LC-230CNC |
Cutting Diameter | Outside Diameter 15-159mm Square Diameter 15*15-110*110mm | Tube Length | 6200mm(can be customized) |
Laser Power | 1000-3000W | Laser Source | MAX / China |
Laser Head | OSPRI / China | L*W*H (mm) | 9050*2600*2380mm |
Machine weight | 4.0 T | Pneumatic chuck | Lingman / China |
Voltage | 380V 50Hz 3Phase (can be customized) | Control System | FSCUT / China |
Air pressure | 1.6 - 3.0 MPa | Nesting Software | FSCUT / China |
Y-axis rack & pinion | FASTON / Taiwan | X & Z-axis ball screw | TBI / Taiwan |
X, Y & Z-axis rail | China | Servo motor & driver | INOVANCE / China |
Pneumatic system | SNS / China | Electrical proportional valve | SNS / China |
FAQ:
1.Q: Are you a manufacturer or trading company? | A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production. |
2.Q:Where is the nearest airport to your company? | A: Wuxi Airport or Shanghai Airport. |
3.Q: How to choose the pipe/tube laser cutting machines? | A: You have to inform us following details: - Pipe Outdiameter Range - Wall thickness range - The pipe material - Cutting Length / Cutting Shape - Pipe Original Length - Production Volume - Other requirements
|
4. Q: Do you have CE certificate? | A: We have CE certificate. |
5. Q:How about your service? | A: Before Sales Serive: 1. We will help our customer confirm the right model according to the offered pipe inforamtion. 2. Welcome to visit our factory to see our machine and our workshop before you place an order. After Sales Service: 1. We provide manual book,detailed machine installation,commissioning video for help you correctly operate machine. 2. We provide free installation,commissioning and training at our factory.If you need engineer go to your factory for machine installation, air tickets,food,hotel, local transportation shoule be at your account. 3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours.
|
>>
