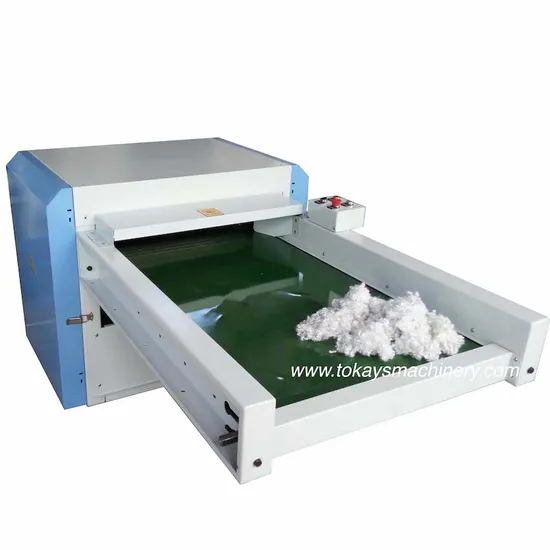

Microfibre Opening Carding and Packing Bagging Filling Machine

Product Description

Details: Fiber opening and filling bagging machine

Production name	Fiber opening and filling machine	Item no.	FF-1
Power	11.75kw	Voltage	380v 50Hz 3phase
Filling slots	2pcs	Capacity	280-320kg/h
Labor need	2	Weight	960kg

1. Machine used for polyester fiber opening and fill into bag.
2. Equipment: fiber opening machie 1pc, blower 1pc, clamp filling slots 2pcs, Siemens PLC control box 1pc.
3. Fiber material: conjugate hollow polyester fiber, recycle fiber, virgin fiber etc.
4. Opening rate 98% up with WHITE SHARK self locking wire roller.
5. Rollers with fiber anti-jam device, easy for maintenance.
6. Opening rollers and blower blade with dynamic balance processing, stable and running smoothly.
7. Overload protection and electricity key parts adopt world famous brand, such as Omron, Siemens.

Description:
Machine used for polyester fiber opening and packing into bag. Whole line controlled by PLC control system only needs 2 operators. One for fiber feeding, another for bag changing. Working process: Feed polyester fiber on conveyer belt of opening machine, blower will transport fiber to packing device. Press start button, clamp close and packing on, after filling time over, packing will stop automatically. Note: Filling time: set up at PLC control screen, it depend fiber feeding and your requirement for fiber volume of each bag Two packing slots work one by one. Opening roller with special self-locking V wire, usage life 4 times than normal ones, opening rate 99% up without hurting the fiber, so that the finished production is good elasticity and hand feeling. Electricity key parts adopt world famous brand. Not only stable quality, but also can get alternative spare parts easily and ensure production smoothly. Fiber wrapping against device of rollers and running deviation against device of conveyer belt make machine easy for maintenance and clearance. All rollers with professional dynamic balance processing, so machine running without vibration. Aluminum blades of blower running faster and light. Safety door, machine with safety relay and safety transformer, ensure labor safety. PLC control box Main structure made by computerized laser cutting machine, stable and not easy out of shape.

---
