Waste Plastic Film Printed Film Package Film Crushing Washing Machine on Sale

Product Description

Waste Plastic Film Printed Film Package Film Crushing Washing Machine on Sale
Application Areas:
Industrial Film Printing Packaging Plastic Film Recycling Crushing Washing Line of Wanrooetech is capable of processing a wide range of hard and soft plastic waste, for example, agricultural films, greenhouse films, package films, PE waste film, PP waste film, PVC waste film, industrial film, printed film and etc.
Product Description
Our plastic film washing line can be used to recycle waste plastic such as plastic bags, agriculture film, woven bags, plastic package products, etc. The whole production line is sure of standard and high quality with CE certification and ISO 9001. It is researched, design and manufactured by our company, integration of Europe technology, it has features like high efficiency, working stable, low humidity content(less than 5%). We use good quality on our machine(SUS-304, more than 3mm thickness) to ensure the whole washing line with a long service lifetime.
Features :
To crushing washing recycling the used, dirty waste PP PE films/bags, protect the environment, Avoid white pollution.
This recycling line is composed of a crusher, cold & hot washing system, dewatering, drying, packing system, etc.
This PP PE waste plastic crushing, recycling, and washing recycling machine line can easily wash and recycle waste PP PE films/bags. Waste and dirty PP PE films/bags can be processed step by step, by this recycling machine. It is special for washing PP PE films/bags. We can help to attach equipment at the end of the washing recycling line so that the completely dry flakes can be collected and packed directly after been washed.
The whole production line can be designed based on how dirty the PP PE films/bags are, and make sure of the quality of the final products.
Coordinating the production line with follow programmed work (granulating system), and will make waste and dirty PP PE films/bags be the PP PE granules material and in order to produce new PP PE products.
Advantage
Our price is competitive and we take responsibility for any quality uncertainty.
Our pursuit of first-rate quality, reasonable prices, and comprehensive after-sales services offers both potential and long-standing clientele confidence in our company.
High automation level production line to reduce cost on labor and increase production.
The innovative design of hot washer and washing tank.
PLC control, Choose the motor brand according to customer's requirements.
We use 304 stainless steel to produce machines that contacting water.
Professional design team to design every project according to customer's need
Equipment List and Details
1.Debaler: As PP/PE films often arrive at washing facilities in baled form, films such as LDPE / LLDPE have compacted in large bundles tied together, bales must first be opened before they can enter the washing equipment. This can be done either manually or via the debaler.
2.Plastic crusher: The plastic granulator cuts PP / PE films into small pieces. The size reduction process is essential in our PE film washing line as long pieces of plastic film can easily tangle in conveyor and rotary-based equipment such as those used in the washing line. To prevent this from happening, the plastic granulator cuts the PP / PE film into pieces that are approximately 10-20mm in size. To further improve this process, we've implemented the use of a wet granulator where water is continuously sprayed into the cutting chamber. This not only partially cleans the PE film, the water acts as a lubricant reducing heat and friction buildup.
3.Single-Shaft / Double-Shaft Shredder/ Crusher: Our industrial single-shaft and double-shaft shredders are designed for use in larger capacity PE film washing plants or recyclers processing PE films that have higher levels of contamination.
4.High Friction Washer: Originally designed in Germany and improved upon throughout the years, this high-power washing machine has the unique ability to thoroughly was PP / PE film scrubbing off dirt, debris, and even breaks apart paper and cardboard into fibers. Learn more about our high friction washer.
5.float / Sink Separation Tank: An essential part of the PE film washing line, the separation tank is the major line of defense against contaminants. Using water as a medium, PP / PE films that float are separated from contaminants that sink such as sand, rocks, glass, metals, and other plastics such as PET, PE, PS, etc.
6.Dewatering Machine: The first stage in the drying process, the dewatering machine uses centrifugal force to remove a large portion of water content from PP/PE film coming directly from the washers.
7.Dewatering Screw Press: A different type of dewatering machine, the screw press uses pressure to squeeze water from the PP/PE film coming directly from the washers. It's up to you to decide which dewatering machine is more suitable for your needs.
8.Thermal Drying System: The PP/PE film is vacuumed out of the dewatering process and dehydrated through a series of stainless steel tubes. Our effection drying system can reduce the moisture content to under 3%. This is the final preparation process for the PP/PE film before it is stored or pelletized into plastic granules.
9.Product Silo: A storage tank for the clean, dry pieces of PP or PE film.

System Configuration

Item	Description
1	Belt Converyor
2	Crusher
3	Rinse Separator Washer
4	Screw Feeder
5	Hot washer
6	High Speed Fricton Washer
7	Screw Feeder
8	Rinse Separator Washer
9	Screw Feeder
10	Dewatering machine
11	Pipeline Dryer
12	Storage Silo

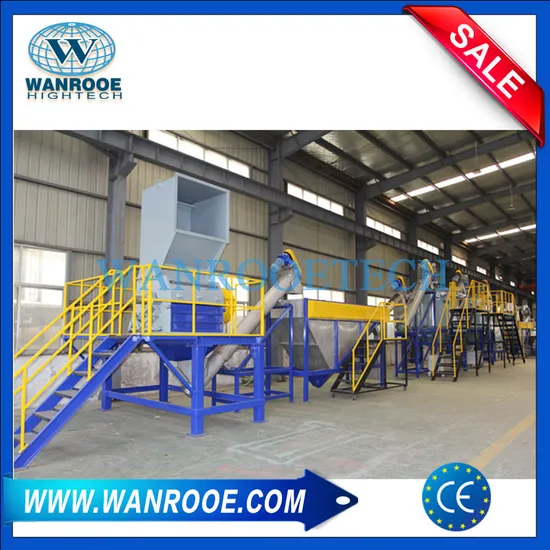

Factory Picture

---
