Muti-Functional Large Electric Industrial Wood Crusher Wood Chipper

Product Description

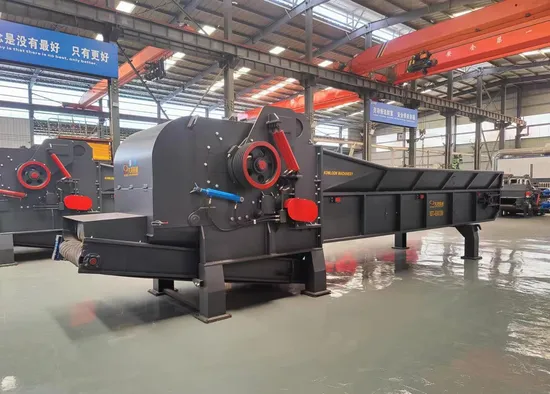

Muti-Functional Large Electric Industrial Wood Crusher Wood Chipper
Instruction:
SWC biomass crusher is sort of new type machine for waste biomass size reduction, which has 3 different rotors for options - hammer rotor, dual chipping blade rotor, chunk chipping blade rotor. Hammer rotor suitable for downsize steel mixed biomass waste like wood pallets, dual chipping blade rotor suitable for downsize fiber green wastes, chunk chipping blade rotor suitable for downsize wood log.
Technical Parameters:

Model	SWC1000	SWC1200	SWC1300	Swc1600
Max feed in diameter	450-700mm	450-700mm	450-700mm	450-700mm
Feeding port size	1000*400mm	1200*400mm	1400*400mm	1600*400mm
Main Motor	110kw	132kw	160kw	200kw
Infeed roller motors	5.5kw*2	7.5kw*2	11kw*2	15kw*2
Discharging motor power	1.5kw	2.2kw	3kw	4kw
Rotary speed of rotor	510rpm	510rpm	365rpm	365rpm
Working capacity	15-20T/H	20-25T/H	25-35T/H	35-45T/H
dimension	6000*2150*1750mm	6000*2350*1750mm	6000*2950*1950mm	6000*2950*1950mm

Features:
SWC biomass crusher with hydraulic open system, features at convenient maintenance and cleaning residue. Feeding conveyor speed adjustable automatically according to infeed speed. Trail type crusher with diesel power system for option
- New design rotor, three kinds of rotors: hammer rotor, chipping rotor, fine grinding rotor, the blades/hammers are replaceable.
- Cover of crushing chamber could be opened by hydraulic, ease for maintenance and changing blades.
- Screen mesh size is customized for different requirements on size of end product.
- Forced feeding system is our proven technique; ensure continuously feeding and large working capacity, even big roll of tree logs or high wooden case is no problem to infeed for this monster.
- High Capacity with larger feeding port than traditional type, which could process big log in arrange of 450mm to 700mm diameter.
Application
1. Chipping whole tree, tree log, branch, tree stump root...etc
2. Crushing nailed wooden pallet, nailed wooden waste, ferrous composited wood, tree bark ...etc
3. Fine chopping animal feed like tree branch, elephant grass, corn silage, wheat straw, paddy stalk, sugarcane, palm leaf..etc
Delivery &Shipping for muti-functional wood chipper
1.Plastic wraps to protect wood shredder, tire shredder from dust, moisture and corrosion.
2. Wooden case for compact machine or wearing parts as the outside package. Or according to the customer requirements.
3.Excellant logistic team to guarantee the shredder machines to be safely shipped to customer warehouse, no extra fee on export or import on custom.
Kowloon Service
1. Pre-sales: Provide fitted solution and offer to customers, is able to adjust the layout of complete line to fit customers' working area, also provide technical support 24 hours service online.
2. After sales:
Kowloon skilled technicians are experienced at oversea installation, therefore they are available to assist with onsite installation, commissioning & training on request. Layout drawing, circuit diagram and maintenance manual will be provided together with our products after sales, so that ensure customers have plenty of time to get prepared for installation.
3. Wearing parts support
Kowloon has widely built extensive cooperation with wearing parts partner manufacturers more than 14years, has ability to continuously provide wearing parts and after-sale service to global market.
Company Introduction
Kowloon Machinery located in industrial hub of Zhenghzou city, China, design and manufacture industrial shredder, wood processing machinery, waste tire recycle equipment and scrap metal recycling machines. Kowloon products approved by CE and ISO certificates. Up to now, we have exported to more than 30 countries and share markets in worldwide, and now are still growing continuously.
We effort on improving and researching, in past years, various of new products were developed and becomes popular in domestic and abroad market, won good reputation and corporate image, we always effort on best quality and service, welcome to inquiry!
FAQ
You May Have Following Questions:
Q1:Are You Trading Company or Factory?
Kowloon Machinery is a Factory with 31 years experience in Machinery Manufacturing,we provide you competive Factory Price
and good After-sale Service!
Q2:What About The Machine Installation?
For a single machine or a simple line,we provide you Foundation Drawing ,Installation Instruction Books or sucessful
installed machinery picture or video;for large machines and complex productioin line,we could send our engineers to guide
the installation if necessary
Q3:How About The Spare Parts?
We offer some free spare parts like belt,gasket etc small parts,for the BLADES,KNIVES,SHAFTS etc important wearing
parts,we sugget customers buy some along with the machines to save the shipping cost,and we have enough spares parts
in stock.
Q4:What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
Kowloon has people special for after-sale service,if customers outside China have problems when machine working,just feel
free to send us the picture or video to show us,we will give you solutions in 24hours.
Q5:Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.

---
