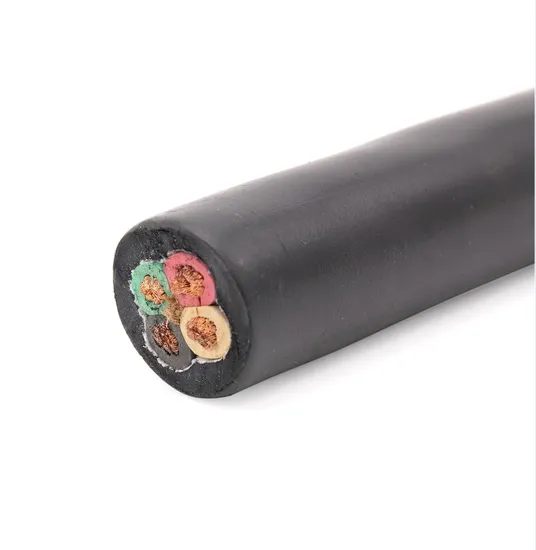

Flexible Soow/Sjoow Power Cables for Outdoor Electrical Applications

Product Description

UL CABLE Applications
1.Applications: soOW Flexible Cords UL/CSA listed are permitted for use as specified by Article 400 and related articles of the
2014 National Electrical Code.The cable is rated -40ºC to 90ºC,water,oil,and weather resistant.
soOW is for use with portable tools,equipment,appliances,small motors and associated machinery where flexibility and durability are required

2.Specification
·UL62
·CSA Standard 22.2 No.49 ·NEC400
·NEC501.140 Class I Division 2 ·Passes CSA FT2 Flame Test
·MSHA
3.Construction

Conductor Size	Number of Strands	Size of Each Strand	Insulation Thickness	Jacket Thickness	Maximum Overall Diameter	Approximate Total Weight
AWG or kcmil		AWG	mil	mil	in	lb/kft
14	19	27	45	25	0.22	33
12	19	25	45	30	0.25	46
10	27	24	45	30	0.28	65
8	37	24	60	30	0.33	91
6	63	24	60	30	0.39	136
4	105	24	60	30	0.45	201
2	154	24	60	30	0.51	274
1	224	24	80	45	0.65	419
1/0	273	24	80	45	0.69	492
2/0	323	24	80	45	0.74	575
3/0	426	24	80	45	0.83	770
4/0	551	24	80	45	0.89	884
263	646	24	95	65	1.01	1114
313	779	24	95	65	1.08	1309
374	931	24	95	65	1.14	1528
444	1110	24	95	65	1.22	1785
535	1332	24	110	65	1.33	2140
646	1591	24	110	65	1.42	2546
778	1952	24	110	65	1.53	3017
929	2318	24	110	65	1.64	3529
1111	2745	24	125	95	1.85	4291

4.FAQ
Q1.ABOUT US?
A1: Zhejiang Yuantong Wire & Cable Manufacturing Co., Ltd. is one of the enterprises of the high-end manufacturing sector of the Fortune Global 500 - Wuchan Zhongda Group(WZ Group) (stock code SH600704). It was Founded in 2000 with a registered capital of RMB 800 million, we are a leading technology company in China that produces the most complete varieties of Bare conductor & Power Cable & Fire-proof cable & UL & CSA List cables.
Q2:how about your quatity?
A2: We have built a provincial "factory of the future" and have the largest single and most efficient special cable intelligent production workshop in Asia. There are advanced production equipment and skilled workers, as well as mature testing equipment.
Q3:how about your price?
A3: Due to our scale and high degree of automation, we can reduce labor costs and procurement costs, so our prices are very competitive in the cable industry
Q4:how about your delivery time?
A4: We have spare core, so our production time can be compressed to 7 days.If your order is large,plz consult our sales staff for specific production time
Q5: can your offer sample service?
A5:we can provide free samples,but the shipping cost need be charged by you.

---
