US$8,000.00-30,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Variable Speed
Variable Speed
After-sales Service
2 Year Warranty
Name
Polishing Sanding Machine
Max. Working Width
1000 mm
Min. Working Length
350 mm
Working Thickness
5-100 mm
Polishing Roller Speed
Frequency Control
Disc Motor Power
1.5kw *1
Worktable Lifting Motor Power
0.37kw
Feeding Motor Power
1.5 Kw
Swing Motor Power
0.37 Kw
Transport Package
PE Package
Production Capacity
100 Sets /Month
Product Description

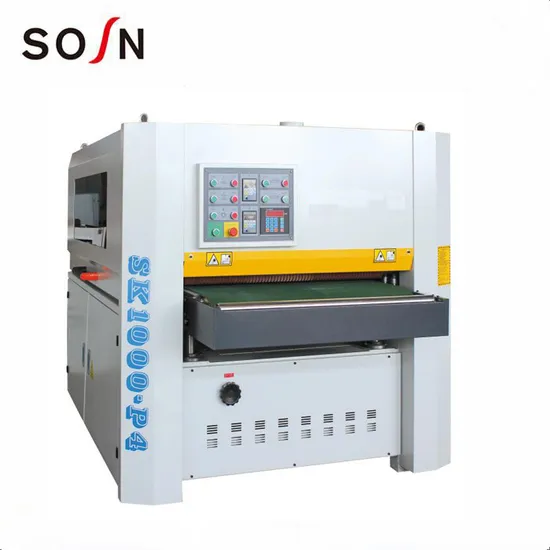

1000 mm four rollers special shape brush sanding machine
Function and Characteristics:
1. The machine suits for sanding of kitchen Cabinet, Window, Door, Furniture…etc.
2.The modular structure can be combined optional to satisfy clients' demands.
3. Frequency conversion speed control is used in each group
4.The height of the worktable can be adjusted.
5.Each unit can be drawn out for sand shelf, or replace emery cloth sanding can parts more portable, easy operation and maintenance.
Technical specification:
| Max. working width | 1000mm |
| Min.Working length | 350mm |
| Working thickness | 5-100mm |
| Polishing roller speed | 50-780r/min |
| Feeding speed | 2.5-12.5m/min |
| Total motor power | 8.14kw |
| Disc motor power | 1.5KW*1 |
| Vertical polishing power | 2.2KW *2 |
| Worktable lifting motor power | 0.37KW |
| Feeding motor power | 1.5 KW |
| Swing motor power | 0.37KW |
| Overall dimensions | 2500*1700*1600mm |
| Net weight | 1700kg |
Inner structure of brush polishing sanding machine Sk1300-P6:
