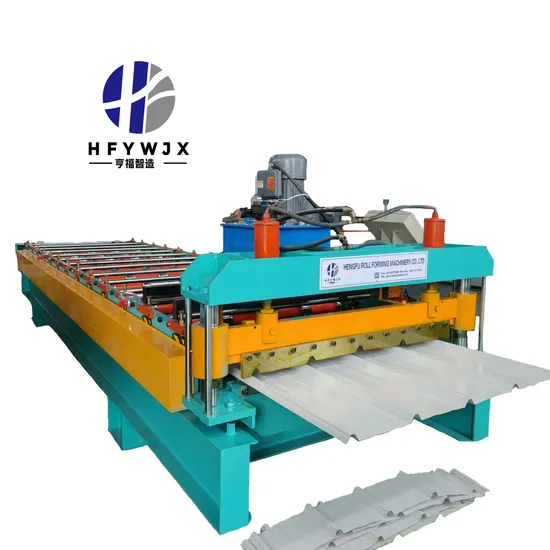

Trapezoidal Tile Making Machine Automatic Roll Forming Machine

Product Description

Detailed Photos


Product Description

raw material	Galvanized plate, color steel plate
Feeding width	1200mm
Rolling thinckness	0.3-0.8mm

Production Capacity 10-15M/min

Place of Origin
Cangzhou, Hebei Province
Video outgoing-inspection
Provided
Key Selling Points
Easy to operate
machine frame
300H steel frame
Tile Type
Colored Steel
Spindle diameter
Φ70mm(solid shaft)
Roll material
No. 45 steel is treated with outer circular grinding and electroplating
Type
Roll Forming Machine
Warranty
1 year
Brand Name
Hengfu
Feeding method
Two-hand rocking feeding rack (with pressure roller)
Dimension(L*W*H)
7000mmx1300mmx1500m
cut off
Cut off after forming, and cut by four-column tie rod guide post
(Shear without burrs, very low maintenance rate)
Electronic control system
Industrial computer PLC frequency conversion control, cutting length error ≤1mm
Usage
Building
Machinery Test Report
Provided
Company Profile

Packaging & Shipping
Certifications
FAQ
Q1: High altitude tile press working noise?
A1:Lack of lubrication in key parts, resulting in serious friction between parts resulting in abnormal sound; Solution: lubricate the key parts.
Q2: After-sales service?
A2:The seller can arrange the commissioning personnel to install and debug in the buyer's factory, and train the operators free of charge. The buyer is responsible for the travel expenses and accommodation of the commissioning personnel.
Q3: Warranty period?
A3:Warranty period: The whole machine free warranty for one year, if the buyer's staff misoperation, improper maintenance caused damage, the seller charges maintenance; Equipment manufacturers trademark, spray cover no after-sales.
Q4:Are you a manufacturer?
A4:Yes absolutely. Welcome a lot for your visiting to us.

---
