Basic Info.
Application
Lawn, Farmland
Moving Way
Tractor-Mounted
Cutter Type
Rotary Lawn Mower
Applicable Area
1000-5000m²
Feature
Height Adjustable Handles
Cutter Kind
Straight Metal Blade
Mowing Requirements
Ground Type
Power Source
Tractor Pto Linkage
Blade Rotor
with Double Blades
Roller
with Bearings in Two Ends
Gearbox
Nodular Cast Iron
Structure
Firm, Stamped Cover
Transport Package
Wooden Box
Specification
CE STANDARD
Production Capacity
100 PCS/Month
Packaging & Delivery
Package Size
1250.00cm * 750.00cm * 550.00cm
Package Gross Weight
150.000kg
Product Description
Product Parameters
1. Transmission: By sturdy toothed belts.
2. Gearbox is made of gravity casting iron. Material performance is better. Not easy broken.
3. With adjustable rear roller, the mowing height can be adjusted.
4. The structure is firm and stable.
5. High welding processes
6. With front protection, it can prevent splashing.
7. Y shape blades, hammer and vertical blades for grass. With double blades.
| Model | EFD-95 | EFD-105 | EFD-115 | EFD-125 | EFD-135 |
Dimension(mm) |
1040×700×520 |
1140×700×520 |
1240*700*520 |
1340×700×520 |
1440×700×520 |
Weight(Kg) |
130 KG |
145Kg |
155KG |
170Kg |
175Kg |
Cutting Width |
950mm |
1050mm |
1150mm |
1250mm |
1350mm |
PTO Input Speed |
540r/min |
540r/min |
540r/min |
540r/min |
540r/min |
Y shape blades |
60 |
72 |
78 |
84 |
84 |
Power Required |
16-20HP |
20-25HP |
20-30HP |
20-30HP |
20-30HP |
3 point linkage | Catagory I
|
Packing size(mm) |
1150×750×550 |
1250×750×550 |
1350*750*550 |
1450×750×550 |
1550×750×550 |

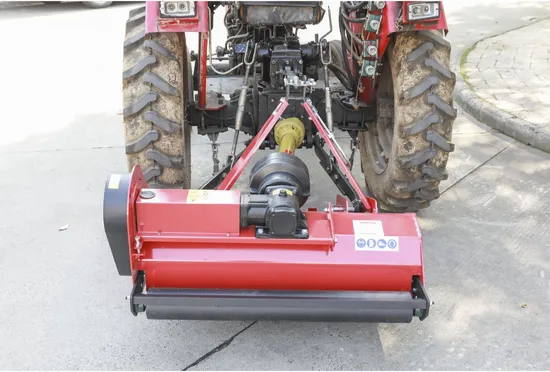

Detailed Photos
Packaging & Shipping
Packaging Detail: Iron pallet or wooden casesDelivery Detail: By sea or By air1. Waterproof packing with the international export standard by 20ft, 40ftcontainer.Wooden Case or Iron Pallet.2. The whole set of machines size are large as normal, so we will use Waterproof materials to packall of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity
