Reflectoless Total Station Japan Brand Geographic Surveying Instrument GPS Ts03 Ts10 Ts07

Product Description

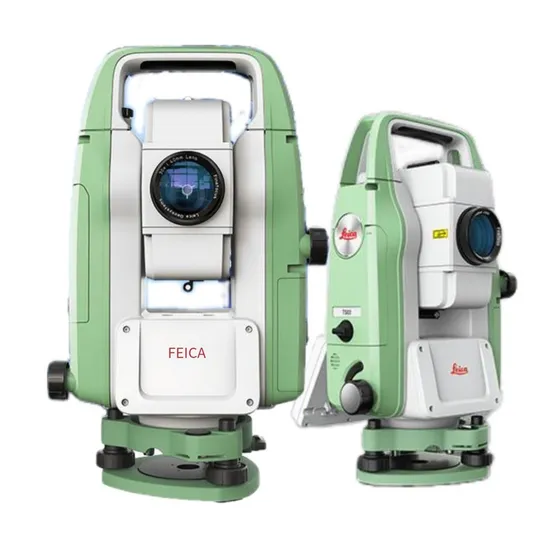

Product DescriptionFlexLine TS03 Manual Total Station
FlexLine TS03 is a classic manual total station for standard measuring tasks, enabling you to carry out most survey and layout tasks easily and efficiently.
Be it building construction, civil engineering or surveying and mapping - the TS03 helps you tackle your daily challenges and tasks trouble-free:Managing directors of construction departments benefit from minimal downtime of your survey crews to deliver projects under budget and in time.
Survey managers can rely on the highest product durability in the market, which increases your planning certainty.
Surveyors work faster by measuring more points per day with less measurement errors and rework. FlexLine: The new generation of manual total stations
The new FlexLine series is based on a proven product concept, revolutionising the world of measurement and survey for nearly 200 years. Unlike any other manual total stations in the market, Geosystems manual total stations focus on providing the highest quality, the lowest total cost of ownership and the longest durability in the industry, enabling users to work with purpose-driven solutions for the best performance results.
FlexField software: Comprehensive, intuitive and easy to use
The TS03 is equipped with the
FlexField software, an intuitive, easy-to-use and familiar software. Guided workflows and easy to understand graphics and icons ensure a low learning curve when working in the field. The software makes the interpretation of measurement values or text no longer necessary and guarantees a faster and simple operation when you need it. With its pinpoint distance measurement system, you will be able to measure to both prisms and any surfaces.
Service and support: Global, local and best-in-class
The new FlexLine manual total stations are supported by superior after sales service and support. With the Active Customer Care program and myWorld customer portal, users have access to latest software updates, service and support as well as to mySecurity. With mySecurity activated, the locking mechanism ensures the device is disabled and can no longer be used.
Product Parameters

ANGULAR MEASUREMENT
Accuracy Hz and V	Display resolution: 0.1'' (0.1 mgon) Quadruple axis compensation Compensator setting accuracy2: 0.5'' / 1''/ 1.5'' / 2'' Compensator range: +/- 4' Electronic level resolution: 2" Circular level sensitivity: 6` / 2 mm
DISTANCE MEASUREMENT
Range	Prism (GPR1, GPH1P): 0.9 m to 3,500 m Prism GPR1 (Long Range mode) > 10,000 mNon-Prism / Any surface: R5003
Accuracy / Measurement time	Single prism Precise+ / Once: 1 mm + 1.5 ppm (typical 2.4 s) Precise&Fast / Once&Fast: 2 mm + 1.5 ppm (typical 2 s) Tracking / Continously: 3 mm + 1.5 ppm (typical < 0.15 s) Averaging: 1 mm + 1.5 ppm Long Range mode / > 4 km: 5 mm + 2 ppm (typical 2.5 s)Non-Prism / Any surface 0 m - 500 m: 2 mm + 2 ppm (typical 2.4 s5 ) > 500 m: 4 mm + 2 ppm
Laser dot size	At 30 m: 7 mm x 10 mm At 50 m: 8 mm x 20 mm At 100 m: 16 mm x 25 mm
Telescope	Magnification: 30x Resolving power: 3" Focusing range: 1.55 m / 5.08 ft to infinity Field of view: 1°30' / 1.66 gon / 2.7 m at 100 m
GENERAL
Display and keyboard	3.5" (inch), 320 x 240 px QVGA, grayscale, 28 keys
Operation	Endless drives for HZ & V Trigger-Key: user definable with 2 functions
Power management	Exchangeable Lithium-Ion batteryOperating time with GEB364: up to 32 hOperating time with GEB334: up to 16 hBattery charging time with GKL341 charger for GEB364 / GEB334: 3 h 30 min / 3 hGKL311 charger for GEB364 / GEB334: 6 h 30 min / 3 h 30 min External supply voltage Nominal voltage 13.0 V DC & 16 W max
Data storage	Internal memory: 4 GB Flash Memory card: SD card 1 GB or 8 GB USB memory stick: 1 GB
Processor	TI OMAP4430 1GHz Dual-core ARM Cortex™ A9 MPCore™ Operating system - Windows EC7
Interfaces	RS232, USB device
Laser plummet (Laserclass 2)	Accuracy Plumb line deviation: 1.5 mm at 1.5 m instrument height Diameter of laser point: 2.5 mm at 1.5 m instrument height
Weight	4.3 kg
Environmental specifications	Working temperature range: -20°C to +50°CDust / Water (IEC 60529) / Humidity: IP66 / 95%, non-condensing Standard 810G, Method 506.5
LOC8	Tracking and theft deterrence device (Optional)

Packaging & Shipping
Company Profile
Shanghai Newdi Navigation Technology Company Limited (NEWDI) was established in Shanghai China. We are engaged in providing high-precision surveying and mapping instrument. The involved industries include land survey, construction, marine and UAVTill now, we have a professional sales team with 5 year experience in average. Branch office in the USA, DUBAI, India and South Africa offers local technical support to word wide users. We put technical support and ll be input our Rafter sale service as our highest level principle. 10% of our revenue is input into R&D every year. We never stop developing a better product for our customer. Quality issues are at the forefront of NEWDI's philosophy. NEWDI received ISO 9001 certification from International Standards Organization. It applies to all aspects of NEWDI's every development process and workflow, covering all steps from the initial design to the final delivery. Our distribution network covers more 10 countries. We take the mission to make survey easier. We are proud of the value that customer benefit from our service and returns continuous trust to NEWDI.
FAQ
1. Who are we?We are based in Shanggai, China, start from 2016,sell to Southeast Asia(30.00%),Africa(25.00%),South America(15.00%),North America(10.00%),South Asia(5.00%),Mid East(5.00%),Eastern Europe(3.00%),Oceania(2.00%),Southern Europe(2.00%),Central America(2.00%),Eastern Asia(1.00%). There are total about 5-10 people in our office.2. How can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3. What can you buy from us?GNSS Receiver,Total Station,Level,UAV,Marine Product4. Why should you buy from us not from other suppliers?Shanghai Newdi Navigation Technology Company Limited (NEWDI) was established in Shanghai China. We are engaged in providing high-precision surveying and mapping instrument. The involved industries include land survey, construction, marine and UAVTill now,5. What services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;Accepted Payment Currency:USD,EUR,HKD,CNY;Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
