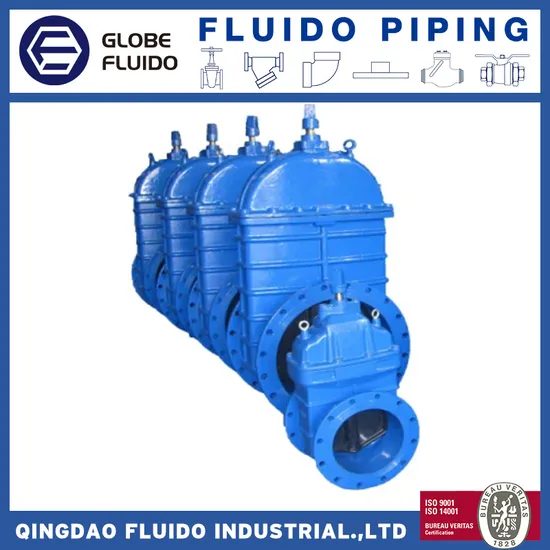

ANSI Flanged End Resilient Seat Non-Rising Stem Gate Valve

Product Description

DIN 3352 F4 flanged end resilient seat non-rising stem gate valve PN16

Item	Gate valve
Standard	Design and manufacture standard		DIN3352
	Face to face dimension		DIN3202 F4;BS EN558-1 SERIES 14
	Flange drilling		EN1092-2
Specification	Norminal Pressure		1.6Mpa
	Suitable Medium		Water
	Test Pressure	Shell	2.4Mpa
		Seat	1.76Mpa
	Test Time	DN50-DN150	60S
		DN150 and up	120S
	Temperature		<100ºC
Product Features	1		Inside screw
	2		Bolted Bonnet
	3		Non-rising stem
	4		Rubber encapsulated wedge
	5		Low torque operation
	6		Flange ends
Material list	Body		Ductile iron GGG40/GGG50
	Wedge		Ductile iron GGG40/GGG50+EPDM
	Stem		Stainless steel 2cr13
	Seat		EPDM
	Bolts and Nuts		Zinc plated carbon steel
Actuator	A.		Hand wheel
	B.		Wrench head
	C.		Electric Actuator
Coating	A		Fusion Bonded Epoxy powder coated
	B		Spray Painting
Face to face dimension	Size		Length
	DN40		140MM
	DN50		150MM
	DN65		170MM
	DN80		180MM
	DN100		190MM
	DN125		200MM
	DN150		210MM
	DN200		230MM
	DN250		250MM
	DN300		270MM

Gate valve fields of application
Gate valves are widely used in water systems such as water treatment plants, distribution networks, potable water applications; Sewage systems such as sewage treatment plants, raw water, digested sewage,air applications ; Industrial systems such as chemical contaminated waste water, gases, industrial media, sea water applications and Food & Beverage systems such as washing and rinsing applications, conveying systems, potable water processing.
Detailed images
Company information
Qingdao Fluido Industrial Co.,Ltd is one of the biggest manufactures and exporters of valves in China. We are specialized in producing variety of gate valves,butterfly valves,globe valves ,check valve, ball valves etc in different material.
To supply competitive at price,reliable in quality,and to full meet and strive to exceed the expectations of our customers, is our business philosophy.
Our servies
1. 1 year warranty
2. spare parts provided such as extra gaskets
3. OEM&ODM are welcome
4. Customer logo can be casted on to valve body after get permission
5. Trial orders are available
6. Samples can be supplied in 2 weeks.

FAQ
Q -What's my consideration when I choose a gate valve?
A -The medium and working pressure of the pipe system
-The outside diameter of the pipe
-The standard of connection flange
Q -What can be the shortest delivery time?
A -35 days as we usually produce according to orders and have limited stocks.
Q -How can I be a distributor of Qingdao Fluido Industrial Co.,Ltd?
A -Contact us immediately for further details by sending an inquiry.
We will reply within 6 hours after get your inquiry.
Please contact us for more information!Qingdao Fluido Industrial Co.,Ltd

---
