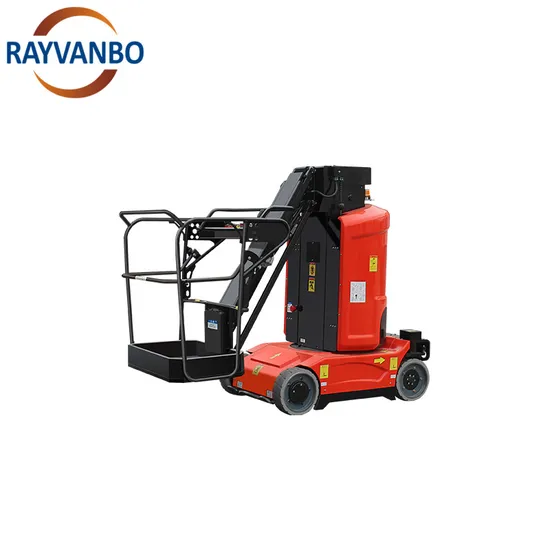

Hot Selling 200kg Self-Propelled Vertical Mast with Jib Aerial Work Lifting Machine

Product Description

Product Description
Self-propelled vertical mast with jib description: Self-propelled vertical mast with a jib is a type of aerial work platform or mobile elevating work platform designed for lifting personnel and equipment to elevated work areas. This equipment is particularly useful in construction, maintenance, and industrial applications where access to high places is required.
Key Features: 1. Self-Propelled: The unit can move independently without needing to be towed or manually moved, providing greater flexibility and efficiency on the job site.
2. Vertical Mast: This is the main lifting mechanism, which extends vertically to provide height. The vertical mast offers a stable and compact solution for reaching high places.
3. Jib: A jib is an additional, often articulating arm that extends from the top of the vertical mast. It provides extra reach and allows for more precise positioning, making it easier to navigate obstacles or reach difficult areas.
Product Advantages
Product Advantages: Versatility: The combination of the vertical mast and jib allows for a range of motion and reach that is useful in various applications, from tight indoor spaces to outdoor job sites.
Compact Design: These machines are typically designed to be compact, making them suitable for use in confined spaces where larger equipment cannot fit.
Maneuverability: Being self-propelled, these units can be easily moved around a job site, enhancing productivity and reducing the need for additional equipment or manual labor.
Safety: Equipped with safety features such as guardrails, harness attachment points, and stability systems, these platforms help ensure the safety of operators working at height.

Product Details

Applications: 1. Construction: For tasks such as installing fixtures, wiring, or other overhead work.
2. Maintenance: Ideal for building maintenance, including window cleaning, painting, and HVAC repairs.
3. Warehousing: Useful in large warehouses for reaching high shelves and performing inventory tasks.
4. Events and Entertainment: Setting up lighting, sound equipment, and other overhead installations.
Specification

Max. Working Height	11.2m
Max. Platform Height	9.2m
Max. Horizontal Reach	3m
Up and Over Height	7.89m
guardrail height	1.1m
Overall Length	2.53m
Overall Width	1.0m
Overall Height(stowed)	1.99m
Platform Dimension	0.62*0.87m
Ground Clearance(Stowed)	70mm
Ground Clearance(Raised)	19mm
Wheelbase	1.22m
Loading capacity	200kg
Occupants	2
Turning Radius(Inside/Outside)	0.23/1.65m
Turret Rotation	345°
Jib Movement	130°
Travel Speed(Stowed)	4.5km/h
Travel Speed(Raised)	0.5km/h
Up/Down Speed	42/38s
Max. Working Slope	X-2.5°,Y-2.5°
Tyres	Ф381*127mm
Driving Motor	24V/0.9kW
Lifting Motor	24V/3kW
Battery	24V/240Ah
Charger	24V/30A
Weight	2950kg
