| US$10,000.00-16,000.00 | 1 Piece (MOQ) |

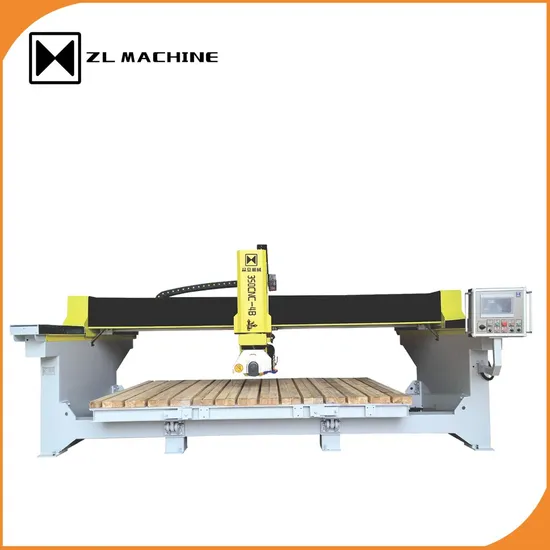

| Model | ZLBS-350CNC/4B | ZLBS-350CNC/4+1B |
| Worktable Size | 3200mm X 2000mm | 3200mm X 2000mm |
| Max Plate Cutting Size | 3200mm X 2000mm X 65mm | 3200mm X 2000mm X 65mm |
| Blade Diameter | 300-350mm | 300-350mm |
| Main Motor Power | 15kw | 15kw |
| Total Power | 20.5kw | 26.5kw |
| Dimensions | L5100mm X W3150mm X H2500mm | L5100mm X W3150mm X H2500mm |
| Water Consumption | 2 m3/h | 2 m3/h |
| Total Weight | 3.8 Tons | 4 Tons |
| Voltage | 380V (Or Can be customized) | 380V (Or Can be customized) |
| X-axis | X-axis adopts 30 Linear Guide Rail, high-precision helical rack and gear, and planetary reducer. It ensure High-Speed and High-Efficiency Cutting. | X-axis adopts 30 Linear Guide Rail, high-precision helical rack and gear, and planetary reducer. It ensure High-Speed and High-Efficiency Cutting. |
| Y-axis | Y-axis adopts 30 Linear Guide Rail, high-precision helical rack and gear, and reducer. It has oil-immersed structure, long-lasting and durable. | Y-axis adopts 30 Linear Guide Rail, high-precision helical rack and gear, and reducer. It has oil-immersed structure, long-lasting and durable. |
| Z-axis | Z-axis adopts 30 Linear Guide Rail and Ball screw. | Z-axis adopts 30 Linear Guide Rail and Ball screw. |
| C-axis | C-axis adopts high-precision Robot Reducer. Its can rotate 0~360 ° to process various shapes. | C-axis adopts high-precision Robot Reducer. Its can rotate 0~360 ° to process various shapes. |
| A-axis | axis can rotate to 0°and 45° with the structure of "Cylinders+ Backer", which has good stability. | axis can rotate to 0°and 45° with the structure of "Cylinders+ Backer", which has good stability. |
| Control center | PLC System+ CNC module + servo drive The system has a built-in drawing library of conventional shapes, supporting data input, is easy to learn and operate. | PLC System+ CNC module + servo drive The system has a built-in drawing library of conventional shapes, supporting data input, is easy to learn and operate. |
| Electric Spindle | Not adopted | Rotation Speed: 24000rpm; 5.5kw Power, To put a milling cutter for milling work |
| Shipment | 20 feet container | 20 feet container |
| Price for sale | $10,000~$16,000 | |
