SMF-500 Plastic PE Milling Machine / Grinder Machine / Pulverizer

Product Description

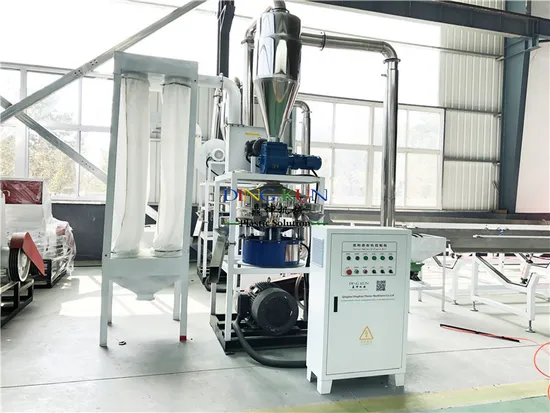

SMF Plastic Pulverizer
Pulverizermaterial would be conveyed by the feeding device into milling chamber evenly, and be impacted by highspeed rotor. The rotor consists of several sections of discs and several blades. Material would be sheared, impacted and rubbed into powder. Qualified fine powder would go with air flow into product collector, while coarse powder would go back to milling chamber forfurther milling.

Performance Features
1.When the rotation speed of rotor is fixed, it can mill various material of Moh's hardness < 2~3, especially for organic product processing and special material milling.
2. It can connect with heater which can do the drying during milling process; it can connect with cooler to do milling under low temperature, for the milling of heat sensitive material.
3.Rotor has vertical shaft. Product size can be adjusted by the change of classifying pin quantity.
4.It can create different milling power by the adjustment of rotor speed or the change of different rotors. Wide application.
5.Design for quick disassembly and maintenance. Convenient maintenance, easy operation and cleaning.
Product Description

Disc-type
Item Model	MF400	MF500	MF600	MF800
Diameter	400mm	500mm	600mm	800mm
Motor power	30kw	45kw	55kw	75kw
Blade material	SKD-11 or D53	SKD-11 or D53	SKD-11 or D53	SKD-11 or D53
Capacity	100kg/h	200kg/h	250kg/h	350kg/h

Rotator-type
Item Model	MF400	MF500	MF600	MF800
Rotary blade	18	24	28	40
Fixed blade	10	12	15	20
Motor power	30kw	45kw	55kw	75kw
Capacity	100-150kg/h	150-250kg/h	250-350kg/h	450-500kg/h

Advantages High speed Wood / Plastic Pulverizer Machine :
High speed Wood Pulverizer Machine characteristics: high-quality tool is easily to replace, long life, low power consumption, high output, simple structure, easy installation.
High speed Wood Pulverizer Machine the host has the wind and water cycle cooling system, automatic feeding device, dust removal equipment, aircraft high degree of automation, effective, significantly reduced labor intensity.
Detailed Photos


Packaging & Shipping
Company Profile
1.We will provide the Feasibility Analysis Report for the wood-plastic project.
2.We will provide the model selection and technical parameter for wood-plastic machinery.
3.We will provide the design for the plant and electric power accounting for the facilities.
4.We will provide the design for wood-plastic formula according to the product requirements.
5.We will provide the technology of wood-plastic product surface treatment
6.We will provide technique training for operator.
7.We will provide solution for the practical problem during the production.
8.We will install and test the machine for free.
9.We will provide turnkey project to customers.
