Universal RAM Vertical and Horizontal Milling Machine XL6436 XL6436cl with Dro and Rotary Table

Product Description

Product Description

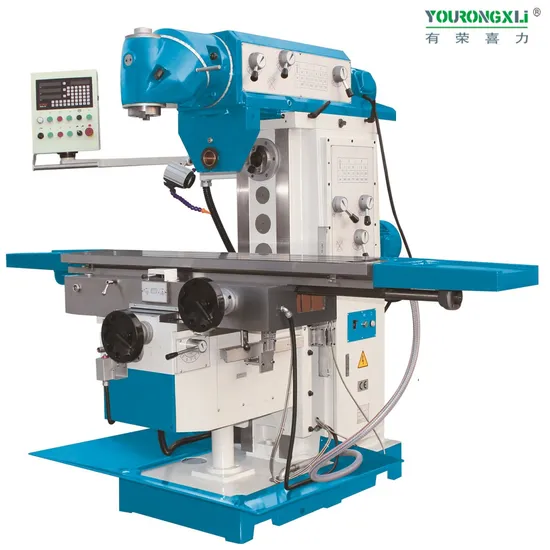

Universal ram vertical and horizontal milling machine XL6436 XL6436CL with DRO and rotary table
The main performance characteristics: 1.Finely graduated feeds in all axis, driven by servo motor, it is a patent product in our company.
2.Complete with rapid feed in x-, y- and z-axis to reduce downtime
3.Precision-ground guide ways with hardened surfaces for long-term accuracy and wear-resistance
Product Parameters

Specifications	Unit	X6436	X6436C	X6436CL
Table size	mm	1325×360		1600×360
Table travel (X/Y/Z)	mm	750/320/460	1100/320/450	1300/320/450
Table feed(X/Y/Z)	mm/min	30~750/20~500/15~375
Spindle taper		7:24 IS050 (H) 7:24 IS050 (V)
Arm travel	mm	550
Distance between spindle nose and table surface	mm	196-656	196-646
Distance between horizontal nose and table surface	mm	20-480	20-470
Distance between spindle axis and arm surface	mm	200
Spindle speed range	r.p.m	12 steps 60-1750 (V) 12 steps 60-1800 (H)
T-slots(NO./width/pitch)	mm	3/18/80
Main motor power	Kw	5.5 (H) 4 (V)
3 to feed Ac servo motor torque	N.m	15
Overall size	mm	1800×2100×2000	2245×2100×2000	2520×2100×2000
Net weight	kg	2685	2750	2800

Detailed Photos
The XL6436 series milling machines are universal machines that are capable of diverse machining, like drilling, reaming, milling and boring.
Featuring optimum structure, easy operation and less maintenance, the machine can also be equipped with DRO system for higher positioning and efficiency in batch production.
The machines have a wide application for single-piece or small batch production in manufacturing, instruments, construction, maintenance and repair workshops and so like industries.

Certifications
Packaging & Shipping
standard export packing: plywood case with steel pallet, inside with plastic bag on machine.
Steel pallet: 1.strong carring capacity
2.Eco-friendly and recyclable
3.Standard export package, fumigation-free
4.Flexible and convenient for transportation
Company Profile
Our factory is located in Tengzhou City, with nearly 20 years history & more than 200 employees.Products include: Gantry machining center, VMC machining center, CNC lathe,conventional manual mills (vertical, horizontal, universal, knee-type, bed-type, gantry-type etc.) Among them, about 70% of the products will be exported to Germany, Poland, Italy, France, Russia, the United States and other European and American international markets.
All products of the company have passed the international standard quality system certification ISO9001 and CE certification, please believe that we are a reliable supplier, you can fully trust our products, hope that we can establish long-term cooperation
Welcome visit our company Shandong XILI Machine Tool Co.,LTD./Tengzhou XILI Machine Tool Co.,LTD.
Address: Xingteng road, industrial area Tengzhou city, Shandong province, China.
Every year, we attend many exhibitions at home and abroad, including CIMES, CCMT, CANTON fair, EMO, Metalloobrabotka etc.
FAQ
1.What is the MOQ ? A.Our minimum order quantity is 1 set.
2. What are the main products of the company?
A. The main production of CNC machining center series (gantry, vertical, horizontal), turning and milling compound, milling machine series (CNC, lifting table, gantry, ram type) and other more than 80 varieties of specifications.
3. why should you buy from us not from other suppliers?
A. Our company has more than 20 years of experience in the field of machine tools. At the same time, with a professional R & D team, actively attract domestic and foreign advanced technology combined with independent research and development, continuous innovation. More than 140 patents have been authorized by the State Intellectual Property Office, including 14 invention patents.
4. How long is the guarantee ?
A. 12 month after machine's delivery from factory. Within waranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.
5. what services can we provide?
A. Accepted Delivery Terms: Usually is FOB, Others like CIF,CFR,EXW...... are also acceptable.
B. Accepted Payment Type: Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videos, Other payment terms are also acceptable after discussion.

---
