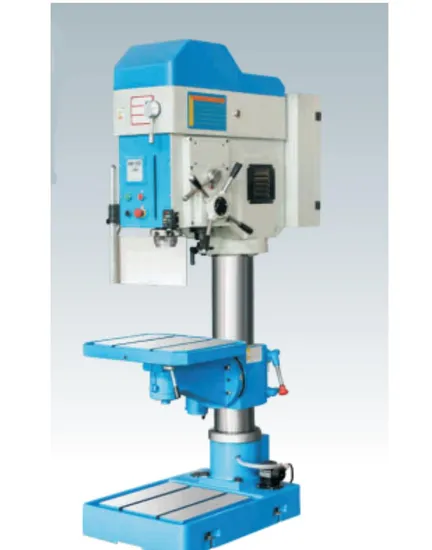

Intelligent High Efficiency Vertical Drilling Machine Zwb5030/40/50

Product Description

Intelligent High EfficiencyVertical Drilling Machine ZWB5030/40/50
Characters:
With wide range of speed and feed, with manual, power and fine feedsThe feed of machines are very easily engaged and disengaged at any timeWith safe and reliable feed safety machine,all parts easy operation and change.All controls centralized on the head stock easy operation and change.Clamping for assemblies and speed change of spindle achiered by hydrandicpower,cmle is sensitna owet nelile.Main parts are made by machine center which import form KlA with highprecision and efficiency,ensuring reliability and high quality.Integrating technology for casting parts is excellent,adopting castingequipment,ensuring high quality of materia for basic parts.Spindle parts are made by special high quality steel heat treatment to bemade by first class equipments,ensuring high strength and durability.Main gears are machined by gear grinding,the machine ensuring highprecision and low noise.
Specification:

Model No.	ZWB5030	ZWB5040	ZWB5050
Item No.
Moving
Max.drilling capacity	30 mm	40 mm	50 m m
Max.tapping capacity	M20	M27	M30
Diameter of column	120 mm	160 mm	180 mm
Spindle
Spindle taper	MT3	MT4	MT5
Max.Spindle travel	135 mm	180 mm	240mm
Spindle speed	50-300, neutral gear ,300-2000 r/min	50-250, neutral gear ,250-2500 r/min	50-200, neutral gear ,200-2000 r/min
Rotary angle of rocker in horizontal plane	±180°	±180°	±180°
Worktable travel	480 mm	550 mm	550 mm
Distance spindle axis to column surface	320 mm	360 mm	360 mm
Availability working area of worktable	420x360 mm	470x390 mm	470x390 mm
Availability working area of base	400x390 mm	450x460 mm	450x460 mm
T-slot size of worktable	2-14	2-14	2-14
T-slot size of base	2-18	2-18	2-18
Max,distance spindle nose to table	540 mm	570 mm	540 mm
Max,distance spindle nose to base	1110 mm	1160 mm	1130 mm
Max.torque	95 N.m	200 N.m	350 N.m
Main motor power	2.2 kw	3 kw	4 kw
Feed motor power	90 w	90 w	90 w
Feed speed rate	21-213 mm/min	18-183 mm/min	20-204 mm/min
Coolant pump motor	40 w	40 w	40 w
Elecromagnetic clutch power	21 w	24 w	32w
Other
Max,external dimension	960x500x1950 mm	1045x665x2095 mm	1055x665x2150 mm
Packing dimension	1100x620x2260 mm	1170x680x2330 mm	1170x680x2390 mm
N.W./G.W.	510/560 kg	690/745 kg	845/905 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
