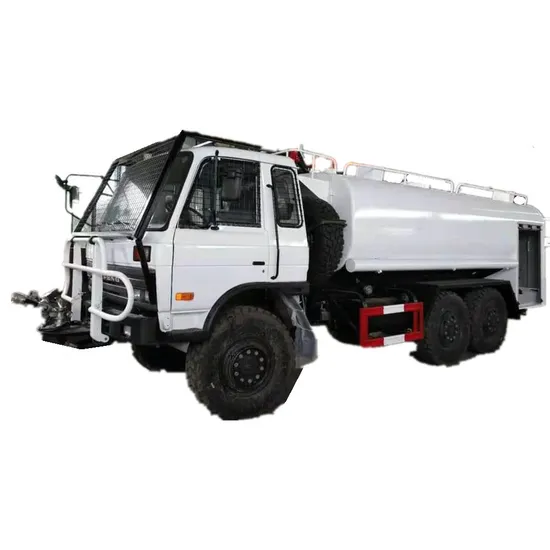

Anti Riot 6X6 Offroad Water Cannon Tanker Trucks with Electric Control Fire Cannon

Product Description

6X6 All Wheel Drive Water Tank Fire Truck
Anti Riot 6x6 Offroad Water Cannon Tanker Trucks with Electric Control Fire Cannon
Water Tanker Fire Truck Mounted with Fire Pumper LHD.RHD

Engine:	YC4EG185-50; ISB190 50;...	Wheelbase (mm):	3500+1250
Displacement (cc):	4730; 5900; 5900; 6700	Dimensions (mm):	7350 × 2480 × 2950
Power (kW):	136; 140; 162; 180	Gross weight (kg):	22495
Fuel type:	diesel fuel	Curb weight (kg):	6200

Chassis model		DFS5160GLJ	Chassis brand	DONGFENG
Overall dimensions		7680X2500X2850mm	Wheel base	3500+1250mm
Front/rear wheel track		1916/1876mm	Front/rear suspension	1510/1800mm
Approach/departure angle		35/34	Maximum speed	90km/h
Chassis Manufacturer		Dongfeng Motor Company
Cab	Configuration	a row and a half cab(with sleeping berth),allowable 3 passengers, air conditioner.
	Color	White, other color is optional
Engine	Model	B190 33
	Emission	Euro 3
	Type	6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, direct injection,diesel engine
	Rated power	190hp,rated power speed 2500rpm
	Displacement	6700ml
	Max.torque	640N.m
	Bore x stroke	102x120mm
	Manufacturer	Dongfeng Cummins Engine Co.,Ltd
Tire	Size	12.5R20 steel wire tire
	Number	6+1 nos
Clutch	350 diaphragm clutch
Fuel tank	350L
Front axle	4.1 tons
Rear axle	4.4 tons
Drive form	6X6
Rated voltage	24V,DC
Transmissions	6 speed forward 1 reverse
Steering device	Power assisted steering

More Details:
1.basic component :antirust tank, connecting device, special self suction sprinkler pump, pipeline, spray outlet, work platform

2. tank body adopts high quality carbon steel plate produced in WISCO, using a large machine molding, junction of the tank
head and body using advanced arc welding process.

3.standard configuration: The water truck installed the sprinkler(front, rear,and side), and the Sprinking length exceed
14 meters,the rear platform with water cannon(range be bigger than 28 meters), Installed the CLW Brand water Pump ,
with virescence sprinkler gun, the sprinkler gun can rotate 360 degrees, also can be adjusted into mist, range ≥ 15m, vertical suction process 7M.

4.functional use: widely used in sprinkler, spray, cooling, dust removal, flushing dust booties, spray pesticides,motor pump station,etc.

5.optional configuration: medicine wheel, drug pump, tank anti-corrosion rust-proof, multi-directional water joints, electromagneti
Off-road vehicle chassis Made in China
Model EQ2220GD5DJ Technical specifications # Engine model Engine displacement Engine power Engine manufacturer

1	YC4EG185-50	4730 cc	4.7 L	289 cuin	136 kW	185 hp	Guangxi Yuchai Machinery Co., Ltd.
2	ISB190 50	5900 cc	5.9 L	360 cuin	140 kW	190 hp	Dongfeng Cummins Engine Co., Ltd.
3	ISB220 50	5900 cc	5.9 L	360 cuin	162 kW	220 hp	Dongfeng Cummins Engine Co., Ltd.
4	ISD245 50	6700 cc	6.7 L	409 cuin	180 kW	245 hp	Dongfeng Cummins Engine Co., Ltd.

Performance

Fuel	diesel fuel
Maximum speed	90 km/h, 80 km/h		56 mph, 50 mph
ABS	have

Weights and Ground pressure

Curb weight	6200 kg	6.2 t		13,700 lbs
Gross vehicle weight rating	22495 kg	22.5 t		49,593 lbs
Axle load distribution	7000 kg / 15495 kg () 7 t / 15.5 t () 15,000 lbs / 34,161 lbs ()

Dimensions

Overall length	7350 mm		24′2″
Overall width	2480 mm		8′2″
Overall height	2950 mm		9′9″

Undercarriage and Suspension

Number of axles	3
Wheelbase	3500+1250 mm		11′6″+4′2″
Front track	1876 mm		6′2″
Rear track	1870 mm / 1870 mm		6′2″ / 6′2″
Front/rear overhang	35 mm / 26 mm, 32 mm / 24 mm		0′2″ / 0′2″, 0′2″ / 0′1″
Approach / departure angle	1250 / 1350, 1430 / 1170 deg.
Leaf springs	10 / 12

Tyres and Wheels

Number of tyres	6
Tyres dimension	315/80R22.5, 12.00R20

Miscellaneous

Seating capacity	3
Steering control	steering wheel

1.Tanker volume series
3000L, 4000L, 6000L, 8000L, 10000L, 12000L,
15000L,16000L,18000L, 20000L, 22000L, 24000L,
26000L, 28000L,30000L, 32000L, 35000L, 38000L,
40000L, 42000L, 45000L, 50000L, 55000L, 60000L,etc.
2.Tanker material
carbon steel, stainless steel, aluminum alloy, pure aluminum
lined rubber, rotational molding, plastic, FRP, etc..
3.Drive system of water tank truck
4*2, 4*4, 6*2, 6*4, 6*6, 8*4, 8*8,etc(2axles 3axles 4axles)
Brand: Sinotruch HOWO, JAC, FOTON, DONGFENG, JMC, SACIVECO, SHACMAN, NORTHBENZ, FAW, all kinds of China brand trucks

4. water tank truck pictures for refe,
Please contact with us if you need more information of the truck:
Similar Keywords: foam truck tanker, fire fighting tank truck, fire and rescue truck, fire appliance, fire engine, fire apparatus, fire truck tank, fire service truck, fire fighting vehicle
Structural classification
The structure of the rescue vehicle consists of the chassis of the vehicle, the bodywork of the bodywork (built-in rescue equipment), the power take-off and transmission, the generator (shaft or independent generator), winch (hydraulic or electric) Generally arm-type, behind the body), lifting lighting systems, electrical systems. According to the different uses of emergency rescue fire trucks, the specific configuration of the car is not the same, such as truck crane, winch, generator, landing lights, not necessarily all the rescue vehicles have. Emergency rescue fire trucks are divided into ordinary rescue vehicles, chemical rescue fire engines, special rescue vehicles (such as earthquake rescue vehicles, etc.).Rescue fire truck Category:
Emergency rescue fire engines can be divided into: light and heavy vehicles two types.
Light car configuration: Qingling chassis as a carrier, special features are: traction, power generation, lighting and rescue rescue tools.
Heavy-duty vehicle configuration: with QLIsuzu Dongfeng Chassis as a carrier, special functions are: lifting, traction, power generation, lighting and rescue rescue tools.
Function type
Car equipped with a variety of fire-fighting equipment, firefighters special protective equipment, fire dismantling tools and fire detectors, is responsible for rescue mission special fire truck.
Chassis model: EQ1168GU5
Chassis manufacturer: dongfeng motor company
Rescue crane: for MG 5 tons, maximum hoisting of 7.4m, prewinch calibration tension of 8000kgf(3629kg)
Generator: imported Honda generator, voltage 380V, power 10kv/A, manual start/electric start
Lighting system: main lamp stand 4+1000W automatic lifting searchlight head DC12V, lifting height 7.6m, air pump AC220V, electric control box AC380V, electric remote control
Force extractor: sandwich type full power extractor
Engine: isb190-50 (190 HP)
Tire model: 9.00-20 16PR
Overall dimensions: 7360 x 2480 x 3330mm
The wheelbase: 4700 mm

Vehicle model	Chassis brand	Chassis model	Load	Overall dimensions	Wheel base	Engine model	hp/standard	Tire	FOB Price
			L	mm	mm				RMB	USD
DRZ5050GXFSGE	DONGFENG	EQ1050NJ20D3	2500	6260X1900X2750	3300	CY4102-C3F	95/Euro 3	6.15-16	135800	19980
DRZ5060GSSXFE	DONGFENG	EQ1060TJ20D3	5000	5980X1980X2380	3300	CY4102-C3F	95/Euro 3	7.00-16	101200	14890
DRZ5090GSSXFE	DONGFENG	EQ1090T9ADJ3AC	6000	6995X2285X2980	3800	CY4102-E3C	120/Euro 3	7.50R16	122300	17990
DRZ5090GXFSGE	DONGFENG	EQ1090T9ADJ3AC	4000	7025X2095X2840	3800	CY4102-E3C	120/Euro 3	7.50R16	170400	25060
DRZ5100GSSXFE	DONGFENG	EQ1100FKJ	7000	7350X2440X2990	3950	YC4E140-33	140/Euro 3	9.00-20	123300	18140
DRZ5108GSSXFE	DONGFENG	EQ1108KJ	9000	7450X2480X3185	3950	B170 33	170/Euro 3	9.00-20	147400	21680
DRZ5108GXFSGE	DONGFENG	EQ1108KJ	5000	7490X2500X2280	3950	B170 33	170/Euro 3	9.00-20	192500	28310
DRZ5126GXFSGE	DONGFENG	EQ1126KJ1	6000	8315X2500X3300	4700	B190 33	190/Euro 3	9.00-20	249700	36730
DRZ5141GSSXFE	DONGFENG	EQ1141KJ	11000	8105X2490X3250	4500	B190 33	190/Euro 3	10.00-20	159400	23450
DRZ5141GXFSGE	DONGFENG	EQ1141KJ	6000	8115X2500X3300	4500	B190 33	190/Euro 3	10.00-20	247700	36430
DRZ5253GSSXFE	DONGFENG	EQ5253GFJ2	15000	9950X2480X3750	4350+1300	B210 33	210/Euro 3	10.00-20	212600	31270
DRZ5090GXFSGPME	DONGFENG	EQ1090T9ADJ3AC	2400	7025X2095X2840	3800	B140 33	140/Euro 3	7.50R16	197500	29050
DRZ5070GXFSGQ	QISUZU	QL1070A1KWY	3000	6820X2000X2820	3815	4KH1-TCG40	120/Euro 4	7.00-16	218100	32080
DRZ5160GXFSGQ	QISUZU	QL1160AMFRY	6000	8360X2485X3420	4500	6HK1-TCNG40	240/Euro 4	10.00-20	457300	67250
DRZ5250GXFSGQ	QISUZU	QL1250DRFZY	15000	9775X2490X3560	5100+1300	6HK1-TCSG40	280/Euro 4	11.00-20	621800	91450
DRZ50703GXFSGQ	QISUZU	QL10703HWRY	2500	6260X1980X2780	3360	4JB1CN	98/Euro 4	7.00-15	182000	26770
DRZ51609GXFSGQ	QLISUZU	QL11609MFRY	6000	8070X2500X3370	4500	4HK1-TCG40	190/Euro 4	10.00-20	378000	55590
DRZ5167GXFSGZ	SINOTRUK	ZZ1167M4617C	8000	8820X2500X3450	4600	WD615.92	266/Euro 3	11.00-20	401600	59060
DRZ5257GSSXFZ	SINOTRUK	ZZ1257M4641W	20000	9895X2496X2958	4325+1350	WD615.92	266/Euro 2	12.00-20	295300	43430
DRZ5257GXFSGZ	SINOTRUK	ZZ1257N4347C	15000	9680X2500X3650	4325+1350	WD615.69	336/Euro 3	12.00-20	476800	70120
DRZ5257GXFSGZ1	SINOTRUK	ZZ1257S4647C	16000	10265X2500X3580	4600+1350	WD615.96	375/Euro 3	12.00-20	473300	69610

Special Specification:
1. Front located 4 ton wrecker shovel, equipped with highpower lifter,
can easily adjust the height of the wrecker shovel, convenient for
switching between driving and operation state of wrecker.
2. double row cab,exclude driver, also can take 2+3 person.
3. the top of the cab is equipped with professional fire warning lights.
4. available to install a full power disconnected power takeoff between
the gearbox and engine.
5. water tank volume is 4 cubic meters.
6. high-power water pumps which can spout 40-50 meters of water column.
7. available to install 2 fire fans and 2 fire fighting high-pressure water cannons.
8. can be equipped with fire extinguishers, fire hammer,
fire shovel, fire hose, fire fighting racket and other professional
fire fighting equipments

Certifications
Packaging & Shipping

FAQ 1.Are you trading company or manufacturer ?
We are Group Corporation manufacturer ,have Group Factories Contractor.
2 .Can I have samples of this type of product to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1 unit.
3. What's the delivery time and can you lower the price?
It depends on your order.The delivery time is within 30 workdays after we received your prepayment. If you have placed an order of large quantities, then,of course, the price can be lowered.
4.Can you supply some quick-wear parts? Yes, we can supply the parts as your request,such as traction,traction pin,balance beam and plate spring,hanging accessories,turntable,all kinds of brake pads,brake pan, bearings,etc.
6.Do you have any used products for sale? We have products in stock for choices,the prices are favorable,we'll show you our stock products if you need.
7.What's the payment terms? TT 30% as deposit, balance before shipment by TT or at sight.
8. How to guarantee customers get the goods smoothly after they payment?
Don't worry,dear.We have joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.
9.How can you ensure the quality of the products? Don't worry,dear.We have joined the trade assurance,if the products have quality problems when you received them,the payments can be refund to you.
There are five commonly used wrecker tow truck , usually depending on the type or size of the recovery wrecker :
First type : Boom towing truck - use adjustable arms and winches to retract vehicles from ditches, embankments, or any vehicle that cannot arrive safely. Some booms are fixed, some heavy rotating racks, hydraulic telescopic tubes, others. In the past boom, trucks used the "hook chain" system, the chain around the frame or axle, and then hoisted by the winch. A heavy rubber pad is attached to the truck and truck so that it can be towed onto other bridges." Slings and belts are an evolution, replacing parts of chains with rubber belts. slings did not use too much today because they could shave bumper cars. But they are sometimes used in wrecker accidents carrier or have one or two front wheels or rear wheels missing or pickups and other vehicles have steel bumpers. Equipped with all wheel drive, the truck is towed away, unable to use the machine string, because it can make the car power transmission system problems.
Second type :Wheel lift wrecker towing truck
(also called "glasses") - from the chain hook technique to generate a large metal frame, can be installed in the front or rear under the cradle, rendering vehicles by pneumatic or hydraulic hoist can drag the ground clear front or rear. The device usually picks up the wheel of the vehicle (i.e., front wheel, if it is front wheel drive, rear wheel, if it is rear wheel drive), and contacts the tire. wheel lift wrecker tow truck are common in china; cradles are like glasses. Medium and heavy-duty trucks use variations, "underlift" or "chassis lift", in which the elevator shaft or frame is not the wheel. A forklift truck can be used as an adapter or a lift chassis.
Third type :Integration towing truck (also known as "Self Loader wrecker equipment", "Snatcher towing vehicle", "quick choice tow truck" or "roll back wrecker") - the arm and wheel lift together. Used of light trucks to recover or stop vehicles. Most of the truck's cab equipment is controlled so that the pickup truck does not leave the truck to connect the vehicle. heavy trucks are also manufactured using integrated lifts.
Forth type --Flat plates wrecker truck (also known as "rolling back tow truck" or "sliding tow truck") - the entire back of the truck is fitted with a bed that can be hydraulically tilted down to the ground, allowing the vehicle to be placed under its own power or pulled up by the winch. [9] because they carry, rather than traction vehicles, it can be completely fixed; in the United States, they carry serious damage to car accidents.
Fifth type ---Lifting platform wrecker truck the derricks lift the vehicle vertically and use the wheel lift to load it on the bed. In Europe, this car can eliminate the parallel parking of vehicles.

---
