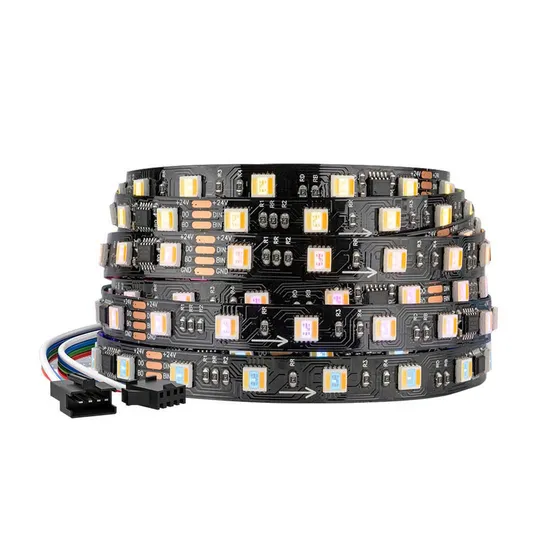

Ws2805 IC Rgbcct Addressable Dual Data LED Strip IP20 5 Colors in 1 Chasing LED Strip

Product Description

WS2805 RGBCCT SMD5050 5 in 1 Led Strip ual Data Wire DC24V 60leds/m Addressable Digital Led Pixel Strip PRODUCT PARAMETER

Model No.	SC5050RGBC60Y1
PCB Width	10MM
LED Quantity	60leds/m
PCB materials	Double-sided pure copper board
Voltage(V)	24V DC
Rated Power(W)	10W/M
Luminous(lm/m)	1800lm/m
LED Chip Brand	Epistar(Sanan optional)
LEDs material	99.99% pure gold wire
LEDs Supplier	Honglitronic (For optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	Colorful
Color Tempertature	Silicone strip
IP Rate	IP20 (IP54/IP65/IP68 optional)
View Angle	120°
Product Size(mm)	10*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL, CE, RoHS, FCC.
Warranty	1 Year

Explore our extensive led strip light product list and discover the future of LED lighting:

Item	2835 series	3528 series	COB series	LED Neon	5730 series	High Volt	5050 series	RGB series	RGBW series	Digital LED Strip
						LED Strip
LED Quantity	30/60/120/240	60/ 120	320/ 528	120	30/60	70/120	30/ 60	30/60	60	60
(leds/m)
Power (Watt/m)	6/ 12/ 17/ 23	4.8/ 9.6	2008/10/12	8/ 10/ 12/ 15	7.5/ 15	2011/12/15	7.2/ 14.4	7.2/ 14.4	19	15
Lumen Flux	24-26/26-28	26-28	700-2200	24-26/26-28	50-55/55-60	24-26/ 60-65	24-26	2000-2400Mcd	3000-3500Mcd	1500-1900Mcd
(lm/led)
Size(L*W)mm	5m/reel	5m/reel	5m/reel	0606/0808/1010/	5m/reel	5/10/20/50m/reel	5m/reel	5m/reel	5m/reel	5m/reel
	4/5/8/10/12/15mm width	8/10mm width	8/10mm width	1212/1616/0612/	10mm width	8/10/12mm width	8/10/15mm width	8/10/15mm width	10/12mm width	10mm width
				0613/1018/0410/
Color Temp	2000k, 2500k, 2700k, 3000k, 4000k, 5000k, 5700k, 6500k, 8000k, 12000k
Color	Warm White, Nature White, Cool White, Red, Green, Blue, Yellow, Orange and other option							RGB	RGB+ White	RGB
Working Voltage	DC 12V/24V AC 110V/220V
Protect Grade	IP20,IP65,IP67,IP68
Working Lifespan	>50000Hours
Package	5mts/Reel , 10mts/Reel , 20mts/Reel , 50mts/Reel ,anti-static bag/inner box+outer carton
Packing Qty	20Reel/50Reel/100Reel/200Reel Each Carton
Warranty	3-5years
Certificate	FCC, CE, RoHS, IEC/EN62471, LM-80

LED STRIP APPLICATION 1. Can be used for home lighting,commecial lighting,etc...
2. Architectural lights for canopy, corridor, window, archway.
3. Backlight or edge lighting for signage.
4. DIY lights for home using.
5. Path and contour marking.
6. Decorative lights for holiday, event, show, exhibition.
7. Special light effect for art gallery and glass-made items. PACKING AND SHIPPING 1. Packaging: 5 meters/roll, box packing (132x132x15mm), 100 rolls per carton
2. Delivery time: Normally about 3-5 working days if less than 2000 meters.
3. Shipping by DHL, FedEx, UPSExpress, or Air Freight and Sea shipment.
PHOTO OF GOODS;
