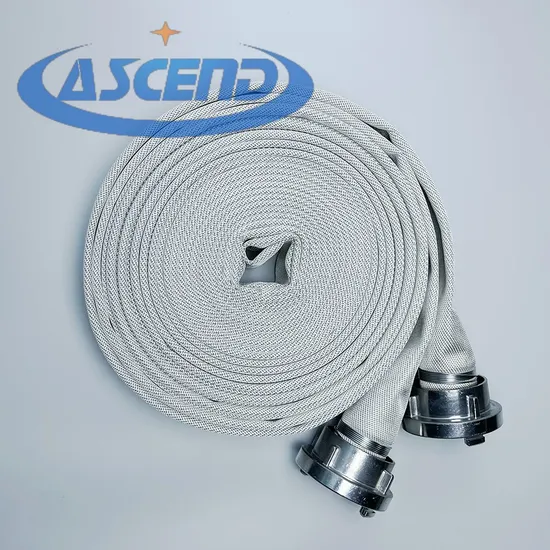

Factory Price PVC Lining Layflat Durable Fire Hose (UL/EN14540/BS6391/MED)

US$1.00 3,000 Meters (MOQ)

Basic Info.

Model NO.
PVC lining
Hose Coupling Type
Hose Coupling
Fire Hose Length
20m
Working Pressure
1.6MPa
Diameter
Custom
Lining
With Lining
Weaving Type
Plain Weaving
Hose Coupling Structure
Screw
Burst Pressure
>4.8MPa
Coupling Style
Custom
Standard
Med/Bsi
Transport Package
Carton, Bag
Specification
28bar-38mm-15m
Trademark
HS FIRE
Origin
China
HS Code
59090000
Production Capacity
2, 000, 000m/Month

Product Description

Product Description
PVC Lining Layflat Irrigation Fire Hose (UL/EN14540/CNBOP/MED)Jacket: 100% filament polyester are combined with filament polyester,single jacket,twill weaving
Lining: PVC:creates an extremely smooth waterway surface, thereby significantly reducing friction loss and improving flow characteristics.The vulcanized adhesion system creates both a mechanical and chemical bond between the PVC lining and the inner jacket, eliminating the possibility of delamination as is experienced with competitive adhesive bonded rubber constructions.
Feature:
1. Very lightweight and highly flexible
2. Good adhesion
3. Easy maintainence and handling
4. Color coating can improve abrasion resistance
Standard: EN14540, MED, CNBOP, SII, KKI
The hose is made and assembled in the China, available with either imported or domestic couplings in aluminum or brass.
Detailed Photos

Product Parameters
Item Size Inner Diameter (ID) Working Pressure Burst Pressure
inch mm Mpa Mpa
HS-PVC 1 1/2 38 2.8 8.4
1 3/4 45 2.8 8.4
2 50 2.8 8.4
2 1/2 65 2.8 8.4
2 3/4 70 2.8 8.4
Note: Hose Size,length, colour and surface options available upon request
Structure
