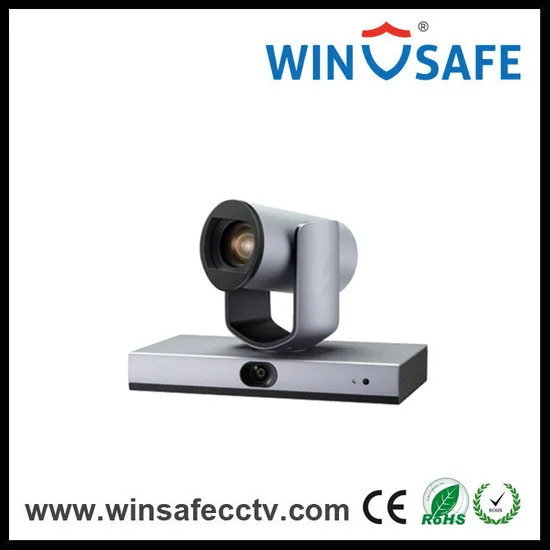

1080P HD Auto Framing Speaker Tracking Dual Len PTZ Video Camera for Meeting Room

Product Description

1080P HD Auto Framing Speaker Tracking Dual Len PTZ Video Camera For Meeting Room
AMC-G200TH speaker tracking camera helps to achieve intelligent meeting experience, implemented with both audio positioning and intelligent video analysis technology, it can automatically switch between close-up image to frame speakers and full view image to frame the whole room, it frees of camera operation during a meeting and enables meeting attendees to focus more on discussion.
Feature* Implemented with audio positioning, body detection and recognition tech, precisely frame speakers, giving best views of speakers and other attendees;
* Innovative dual cam design for tracking views and full views with auto and quick switch;
* Various modes of speaker tracking and auto recognition and close up shot of board writing;
* No hand operation involved, helping attendees focus on meeting and discussion;
* Designed for medium and large sized meeting rooms, class rooms and halls, covering range up to 8 meters;
* Tracking cams: 12x optical zoom, HFOV up to 72.5°;
* Support H.264/H.265 video compression
* Simultaneous outputs over HDMI, USB3.0, 3G-SDI and Ethernet, resolution up to 1080P60;
* USB HOST interface for external mic input;
* Compatible with popular conference hardware and cloud platforms such as ZOOM, MS Teams etc.;
* ROHS, CE, FCC certified.
Specification

Model No.	AMC-G200THV2
Tracking Camera
Video Standard(HD)	1080p60,1080p50,1080p/30,1080p/25,1080i/60,1080i50,720p/60,720p/50
Focal	f = 3.9mm - 46.8mm
IRIS	F1.6 - F2.8
Zoom	Optical: 12X, Digital: 16X
Field of View	72.5° - 6.3°
Focus	Auto, Manual, PTZ Trigger, One Push Trigger
Min.Illumination	0.5Lux(Color), 0.1Lux(B/W)
Shutter Speed	1/50 - 1/10,000s
AGC	Auto/Manual
White Balance	Auto, One Push,Manual, Auto Tracking, Static Color Temperature
AE Control	Auto, Manual, Shutter Priority, Iris Priority, Bright Priority
S/N Ratio	Above 50dB
DNR	2D/3D
BLC	Support
Full-View Camera
Image Sensor	1/2.5" CMOS, 2.14MP, 1.89mm
Lens	Prime lens, 4X Digital Zoom
Field of View	110°
Video Adjustments	Support EPTZ
PTZ
Pan/Tilt Range	-130° - +130°; -30° - +90°
Preset Number	64
Network
Max,Image Size	1920x1080 @ 60fps
Video Compression	H.265,H.264
Audio Compression	AAC
Protocol	RTSP,RTMP,RTP,TCP,UDP,ONVIF
Steam	Support 3 channel streams, dual close-up view, one channel full view, one channel switch and four streams
Interface
Network Interface	1xRJ45: 10M/100M, support POE
Network Video Output	1080P30/P25, 720P30/P25,360P30/P25
3G-SDI Interface	1080P60/P50P30/P25, 720P60/P50
HDMI Interface	Support Audio Output; 1080P60/P50/P30/P25,720P60/P50
USB3.0 Interface	Type-B 1. Support UVC1.1 2. UVC Support: H.264/H.265/MJPEG; 1080P60/P50/P30/P25,720P60/P50/P30/P25,360P30/P25; YUY2/NV12: 1080P30/P25,720P30/P25 3. UAC Audio Format PCM
USB2.0 Interface	Type-A Host (For external mic input)
Audio Output	1 x 3.5mm Line In
Control Interface	1 x RS-232 In, 1x RS485
General
Control Protocol	VISCA
Address	1 - 6
Power Supply	DC12V
Power Consumption	Below 20W
Working Temp	0°C - +40°C
Storage Temp	-20°C - +60°C
Dimension	245mm x 145mm x 165mm
Weight	Below 2kg

---
