US$51,000.00-100,000.00
|
1 Set
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Method
Hydraulic Pressure
Processing
Brick Production Line
Brick Raw Material
Sand, Stone, Cement, Water
Transport Package
Standard Packing
Specification
3000× 2090× 3000mm
Production Capacity
500set/Year
Product Description
Product Description
Features

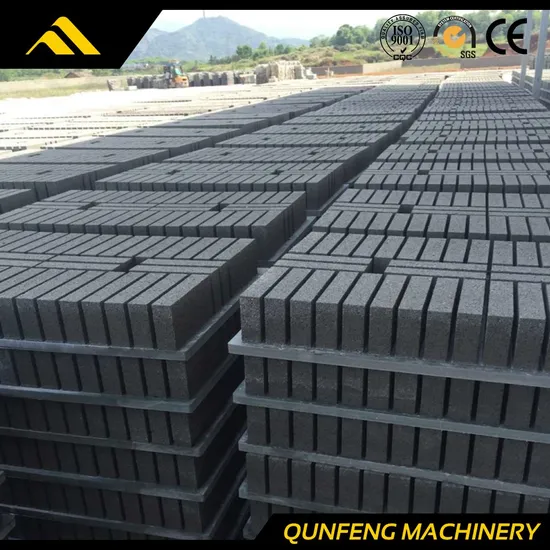

This machine has the feature of easy operation, excellent products quality, stable performance and low operating cost, it can satisfy the various production requirements, like the baking-free bricks, permeable paver, hollow blocks, curb stones and so on. And the height of products also can be heightened according to customer's requirements; the maxium height of the blocks can be 300mm.
1) The unique arch beam demoulding structure ensure the accurate demoulding requirements, which avoid the damage to blocks and easy to maintain and adjust.
2) The advanced percussive vibration system has better vibration effect which can also reduce the shock to the framework , to ensure the machine with long lifespan
3) The feeding cart is driven by gearbox, which can reduce the cycle time and improve the production efficiency.
4) Forming machine is customized to satisfy customer's requirement, the max. Height of product can reach 300mm
Technical data:
| Dimension | 3000×2090×3000mm |
| Rating pressure | 21MPa |
| Vibration | Table vibration |
| Vibration frequency | 2800 - 4500r/min |
| Pallet size | 1100×620mm |
| Cycle time | 11-25sec. |
| Power | 41kW |
