Product Description This series of water meter's production process is automatic or semi-automatic, including automatic detection of circuit boards, the automation of the circuit board's high-low temperature teat machine, the automation of potting and calibration process, ensuring that every machines out of the factory are qualified.

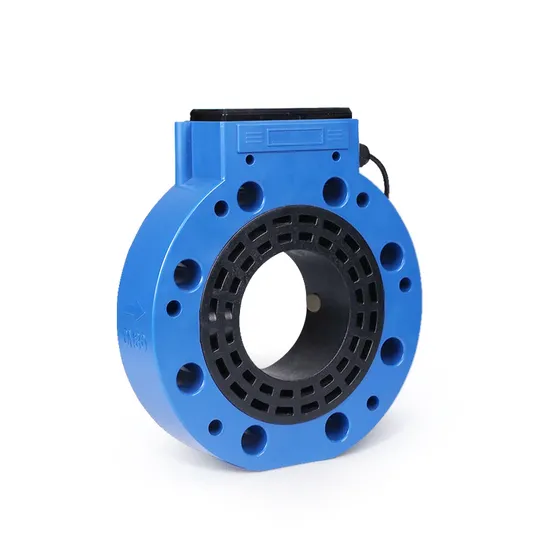

| Product Name | Ultrasonic water meter |
| Executive standard | ISO 4064-2005,GB/T 778-2007,JJG 162-2009 |
| Measuring fluid | Water, raw water, sea water, and filled pipes |
| Pipe diameter | DN50~DN150 |
| Working pressure | PN16/25 |
| Accuracy | 1% |
| Fluid temperature | 0.1ºC~+30ºC |
| Work environment | Temperature: - 10 ºC ~ + 45 ºC; humidity ≤ 100% RH |
| Under pressure | 1.6Mpa |
| Communication interface | RS485 / USART / IR |
| Power supply | Built in lithium battery (3.6V, 19ah) / external DC8 ~ 36V DC power supply / two wire 4 ~ 20mA power supply |
| Protection level | IP68 can work 2 meters underwater |
| Local display | Double line display includes 9-bit cumulant, 4-bit instantaneous flow, unit and various status prompts |
| Data storage | EEPROM / flash storage parameters are used to automatically record the cumulative flow of the first 128 months and the first 512 days |
| Application | Measuring the volume of cold (hot) water passing through the pipeline.water meter is used for irrigation,municipality etc |
