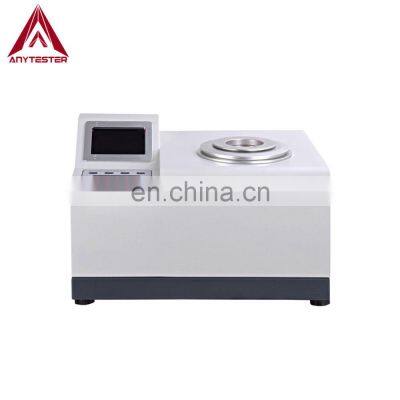

Product DescriptionAT491 Water Vapor Permeability Tester is used to determine the water vapor permeability of plastic film or sheet by mass-reducing method. Working principle: the specific amount of distilled water is placed in the test dish and test specimen is mounted on the test dish, so the test cavity is separated to two parts. On conditions of a specified temperature and humidity difference between two parts, water vapor passes through test specimen from the lower part into the upper part and absorbed by the desiccant. The mass loss of distilled water in test dish is weighed to calculate the water vapor permeability of the test specimen. StandardGB/T 1037-1988GB/T 16928-1997YBB 00092003-2015TAPPI T464ASTM E96/E96-2016ASTM D1653-2013ISO 2528-1995JIS Z0208-1976SpecificationModelAT491Number of test cavityOneMeasuring range0.02~10000g/m2﹒24hMeasuring accuracy0.001 g/m2﹒24hTemperature range10℃~45℃Temperature accuracy0.1℃Sample thickness≤2mmSample diameter¢90mm (test area: 50.24cm2)Power supplyAC220V 50Hz, 500WDimensions52×42×34cmWeight43kgFeatures★ Large colorful touch screen, setting of parameters and displays of test curve and report;★ Automatic control, automatic test, automatic judge and automatic stop, simple operation and reliable result;★ Real-time curve display of temperature, humidity, water vapor concentration and permeated amount;★ High-technology electromagnetic programmable step-by-step temperature controlling, automatic heating and cooling, no need of external temperature-controlling device;★ Single test cavity with rapid testing rate;★ High-precision sensor, continuous weighing and data acquisition;Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions1400*900*1600mmWeight200kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
