| US$18,000.00-25,500.00 | 1 SET (MOQ) |

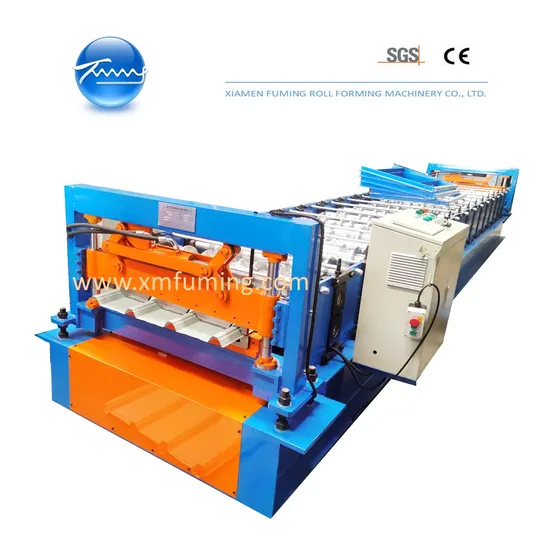

| ROLL FORMING MACHINE FOR YX35-235-705 ROOF PROFILE | |
| Material Specification | |
| Thickness | 0.4mm to 0.8mm |
| Effective width | 705mm |
| Feeding width | Approx.914mm |
| Material | PPGI, GI |
| Yield strength | 550MPa |
| Machine Components | |
| Roll Forming Machine | |
| Driving system | Gear/sprocket |
| Forming station | 16 stages |
| Roller material | 45# steel, CNC lathes, hard chrome coated |
| Shafts Diameter | Φ75mm |
| Main motor | 11KW, frequency speed control |
| Line speed of rollformer | Approx. 25m/min |
| Hydraulic Cutting Device | |
| Cutting type | No blanking cut |
| Cutting tool material | Cr12, heat treatment |
| Hydraulci pump motor | 4KW |
| PLC Control System | |
| Function | Control the quantity & cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Delta/Schneider |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2 mm or customized |
| Control Voltage | 24V |
