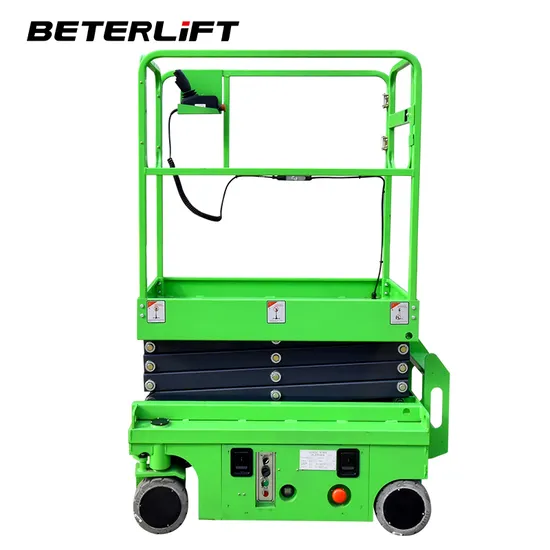

5m 6m Small Indoor Aerial Construction Elevator Hydraulic Steering Electric Scissor Lift

Product Description

3m-8m Small Indoor Aerial Construction Elevator Electric Scissor Lift
Product Description
Blift Brand mini self propelled scissor lift is specially designed for indoor outdoor aerial works with lower height and narrow space. With comapct sizes, light weight and strengthened structure, it is portable and easy to operate.
Different from Semi electirc mini scissor lift , Self propelled mini scissor lift is drivable by operating the control panels on the platform and on the body.With automatic walking, turning and lifting, self propelled scissor lift highly imporves the worker's woking efficiency.
Now, mini scissor lift is widly used in installation service companies, decoration companies,theaters, galleries, and other places with lower height.
Features and advantages:
1. Proportional controls
2. Driveable at full height
3. Multiple safety precautions
4. Automatic brakable system
5. Automatic Diagnostic system

Product Parameters

Model No.	MSS-H5.0DC	MSS-H5.9DC	MSS-H6.8DC
Max. Platform Height(mm)	3000	3900	4800
Max. Working Height(mm)	5000	5900	6800
Lift Rated Capacity(kg)	300	300	300
Ground Clearance(mm)	60	60	60
Platform Size(mm)	1170*600*1100	1170*600*1100	1170*600*1100
Wheelbase(mm)	1010	1010	1010
Min. turning radius(mm)	1400	1400	1400
Max. Drive speed(Platform Stowed)	4km/h	4km/h	4km/h
Max. Drive Speed(Platform Elevated)	0.8 km/h	0.8km/h	0.8km/h
Lifting/falling speed(SEC)	20/30	20/30	20/30
Max. Travel Grade(%)	10-15	10-15	10-15
Drive motors(V/KW)	2×24/0.4	2×24/0.4	2×24/0.4
Lifting motor(V/KW)	24/1.2	24/1.2	24/1.2
Battery(V/AH)	2×12/ 80	2×12/ 80	2×12/ 80
Charger(V/A)	24/10A	24/10A	24/10A
Max allowable working angle	2°	2°	2°
Overall Dimension of the machine (mm)	1340x760x1880	1340x760x1980	1340x760x2040
Driving Wheel (mm)	φ230x80	φ230x80	φ230x80
Front Wheel (mm)	φ230x80	φ230x80	φ230x80
Overall Net Weight(kg)	650	700	930

Detailed Photos
Company Profile
Shadong Belift machinery is specialized in the industry of Manufacturing Aerial Work Platforms and Material Lift Platforms. Establised in the year of 2015, now our products are welcomed the customers all over the world.
Certificate: CE, ROHS, SGS, ISO etc.
Welcome to visit us and negotiate business. We will pick up you and arrange the accommodation hospitally.
Dealers and Wholesalers are especially welcomed and we will give special discounts.
Our Advantages
1.Adopting perfect shot blasting treatment and anti corrosion paint spraying, it is beautifal in apperance.
2. Unique design for Compact structure,it is strong enough to support the loading.
3. Produced by automatic production line and the quality is highly guaranteed.
4. High strengthened steel structures, smoothly lift up and drop down, easily operated, very few faults.
5. Power sources: customised as per the local standards
After Sales Service
1.Spare parts provided freely within quality warranty.
2. Providing user's manual.
3.Liftetime techinique support.
4.24 hours telephone and Internet service
FAQ
1.How can customer buy parts once it break down?
The scissor lift table adopt most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the scissor lift table.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.If it breaks down within one year,we can send the parts free of charge to you.
Certificate:CE ROHS SGS ISO ETC.

---
