Automatic Silk Screen Printing Machinery

Product Description

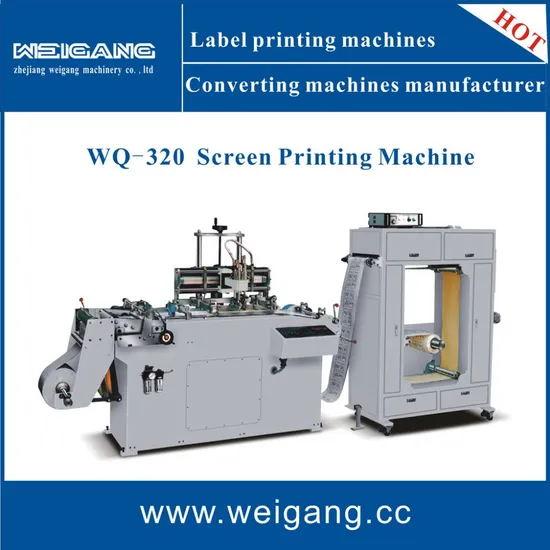

WQ-320 Silk screen printing machine
WQ-320 series CNC silk screen printing machine is applicable for printing on variety of material, like PVC, OPP, ant counterfeit trademarks and adhesive labels, and more. It can finish printing, drying and rewinding at one stroke.
Weigang Machinery Company is a professional silk screen printing machine manufacturer and supplier based in China .We have been ISO 9001:2008 certified ,In addition to silk screen presses , we can also provide flexo printing machines, offset printing equipment and die-cutting machinery, and more. All our products are CE certified and are sought after by customers from the United Stated, Spain, Portugal, Russia, South Korea, among over 50 countries.
Characteristics:
Yaskawa CNC controlled servo motor purchased from Japan is employed for roll material feeding .The main transmission part of our silk screen printing press is pneumatically controlled. Meanwhile, a SILK brand photoelectric tracking device imported from German is also equipped to guarantee high precision printing.
Hence, our screen printers are characterized by high precision color registration, steady material feeding, and simple adjustment .Functions like auto metering and counting are also available.
Main Equipment:

Description	Quantity and Brand
Servo motor	1piece Yaskawa( Japan)
Driver	1piece Yaskawa (Japan)
Inverter	1piece Schneider (France)
Web-guiding photocell switch:	2pcs KONTEC KS-C2G( Taiwan)
Tracking photocell switch:	1 piece SICK NT6(Germany)
Air cylinder	1piece SMC( Japan)
Main motor:	1 piece Wannan Motor(China)
All Button:	1piece Schneider (France)

Main Technical Parameters:

Printing speed:	10-50 times/min
Max unwinding diameter:	450mm
max web width:	320mm
Max printing width:	300mm
Max printing length:	320mm
Localization accuracy:	±0.15mm
Main motor power:	1200w
Oven power:	4100w
Main machine dimension:	2.4(L)x0.95(W)x1.5(H)(m)
Over dimension:	1.75(L)x0.6(W)x1.8(H)(m)
Machine weight:	about1100kg

---
