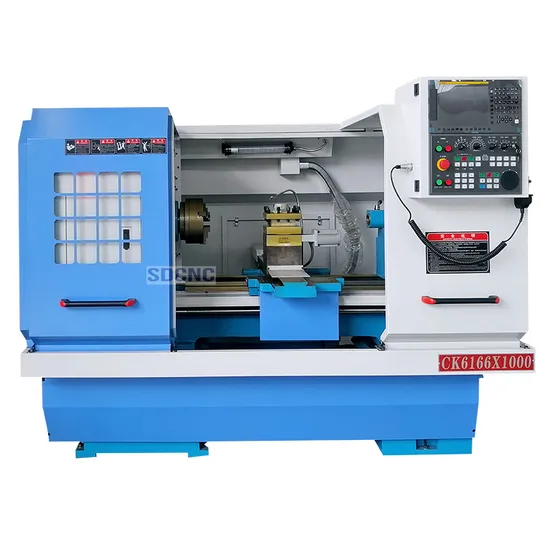

SDCNC Ck6166 CNC Horizontal Flat Bed Lathe High Precision Turning Tools Machining Lathe Machine

Product Description

Product Application
CAK series CNC Lathe machine is and economical, practical type machine tools with good quality.
The machine has a very wide use which is suitable for internal and external turning, tapering, circular arc, thread,
boring, reaming of axis and disk workpiece. It also can achieve non-circular curve machining. You can choose
the CNC system and optional accessories according to your requirement
Product Parameters
Specification:

Model	CK6166
Swing over bed	φ660mm
Swing over cross slide	φ440mm
Distance between centers	1500mm	2000mm
Spindle nose	D1-8
Spindle bore	φ105
Taper of spindle bore	φ113(1:20)
Range of spindle speed	4 changes/MT5,10~1500r/min
X-travel	370mm
Z-travel	1460mm
X rapid speed	7500mm/min
Z rapid speed	9000mm/min
Min. input	0.001mm
X positioning accuracy	±0.022mm
Z positioning accuracy	±0.032mm
X repositioning accuracy	±0.006mm
Z repositioning accuracy	±0.01mm
Nos. of tool position	4
Max. Section of tool	25x25mm
Dia. of tailstock sleeve	φ90mm
Travel of tailstock sleeve	φ235mm
Taper of tailstock sleeve	No.5 Morse
Power of main motor	7.5kW(10HP)
Overall dimension(LxWxH)	316x180x175cm	366x180x175cm
Packing size(LxWxH)	341x205x220cm	390x205x220cm
Net weight/Gross weight	3000kg/3400kg	3500kg/4100kg

---
