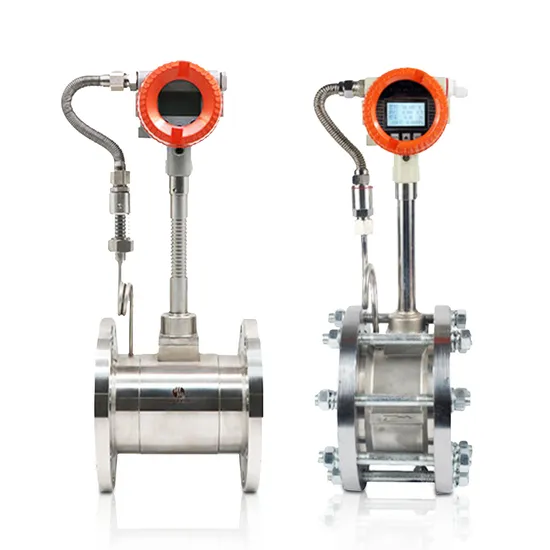

Vortex Flow Meter Vortex Street Flowmeter Air Flowmeter

Product Description

Product Description 1. No moving parts,high reliability, long-term stability, simple structure and easy maintenance
2. Various structural forms, flange , clamping, clamp in, threaded ,tri-clamp, also can be customized.
3. Wide measurement range and high accuracy, liquid is ±1.0%; gas is ±1.0~1.5%;
4.Pressure loss is small (about 1/4-1/2 of the orifice flowmeter), which belongs to the energy-saving flow meter Product Parameters

Diameter(mm)	15,20,25,32,40,50,65,80,100,125,150,200,250,300,(300~1000 plug-in)
Nominal pressure(MPa)	DN15-DN200 4.0(>4.0,Supply agreement)DN250-DN300 1.6(>1.6,Supply agreement)
Medium temperature(ºC)	Piezoelectric type :-40~150ºC,-40~250ºC,-40~330ºC;
	Projected Capacitive:-40~400ºC(Supply agreement)
Body material	1Cr18Ni9Ti(Other material order by agreement)
Permissible vibration acceleration	Piezoelectric type :0.2g Projected Capacitive:1.0-2.0g
Accuracy	±1%R,±1.5%R;plug-in:±2.5%R
Range of degrees	1:6~1:25
Power Supply	Sensor:DC+12V,DC+24V;Transmitter:DC+12V,DV+24V;Battery-powered:3.6V
Output signal	Pulse:high level:≥5V low level:≤1V;electricity current:4~20mA
Pressure loss coefficient	Comply with JB/T9249 standard Cd≤2.4
Explosion-proof coefficient	Intrinsic safety :Ex ia II CT2-T4 Explosion-proof type:Exd II CT2-T5
Level of protection	Ordinary type:IP65 Diving type:IP68
Environmental conditions	Tempersature:-20ºC~55ºC,relative humidity 5%~90%,atmospheric pressure:86~106kPa
Applicable medium	gas ,liquid,steam

Detailed Photos
FAQ FAQ:
Q1: What's your business range?
A: We manufacture PH/ORP/EC/DO/Chlorine/Turbinity meter and provide dosing pump, diaphragm pump,dosing system, pressure instrument, flow meter, level meter, dosing system and so on.
Q2: How about the quality of the managements?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.
Q3: Can you offer OEM or design services?
A: Yes, we have our own design department and production tools. We can make OEM products according to your requirements.
Q4: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q5: How about warranty?
A: 12 months warranty.

---
