| US$3,000.00-50,000.00 | 1 Set (MOQ) |

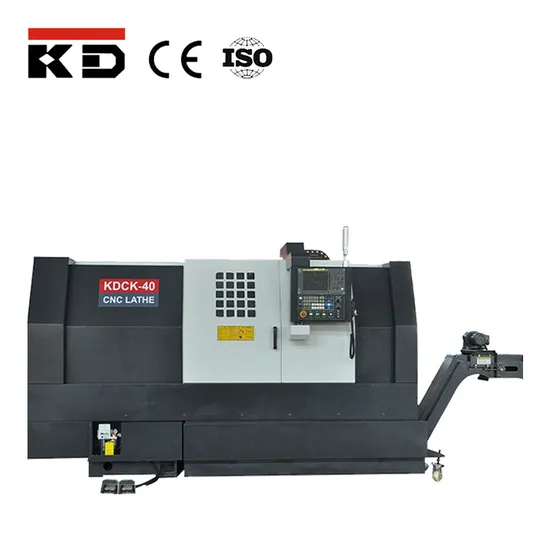

| MODELS | KDCK-40H |
| CAPACITY | |
| Max. swing over bed | Ф750mm |
| Max. cutting diameter for disc parts | Ф700mm |
| Max. cutting diameter for axle parts | Ф350mm |
| Max. length of workpiece | 870mm |
| TRAVEL | |
| Max. cross travel(X) | 350mm |
| Max. longitudinal travel(Z) | 1050mm |
| FEED | |
| Rapid feed for axis X | 12m/min |
| Rapid feed for axis Z | 30m/min |
| SPINDLE | |
| Max. speed of spindle | 100-2000rpm |
| Spindle nose | Ф105mm |
| Spindle bore | Ф220mm |
| Type of spindle motor | Variable frequency |
| Spindle motor power | 15/18.5kw |
| Hydraulic chuck | 12″ |
| TOOL POST | |
| Tool number | 12 |
| Live tool serve motor power | 3.7/5.5kw |
| Max speed of live tool | 4000rpm |
| Outside diameter of cutting tool shank | 25×25mm |
| Inner dia.of cutting tool shank | Ф40mm |
| TAILSTOCK | |
| Tailstock sleeve dia. | Ф100mm |
| Tailstock sleeve travel | 210mm |
| Taper hole of tailstock quill | M.T.No.6 |
| OTHERS | |
| Repeatability | ≤0.006mm |
| Min. input | 0.001mm |
| Bed structure | 30° slant bed (two pieces of bed stand) |
| Overall dimensions(L×W×H) | 3375×2250×1965mm |
| Net weight | 5400kg |
