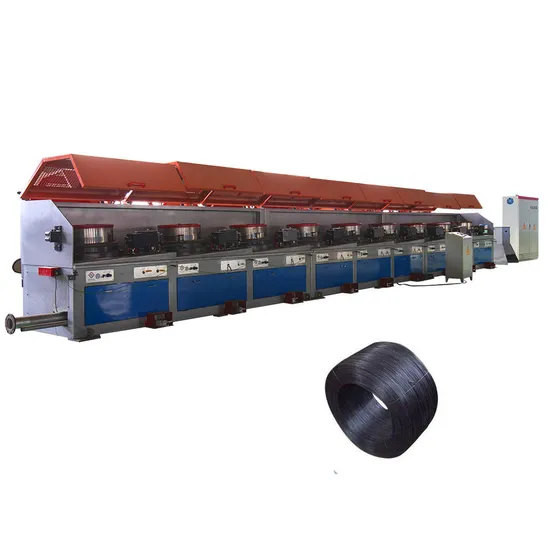

Dry Type Carbon Steel Wire Lz10/560 Straight Line Wire Drawing Machine

Product Description

Product Description
Dry type carbon Steel wire LZ10/560 Straight Line Wire Drawing Machine (1) The equipment contains the functions of human-machine dialogue, over-temperature protection for motor, alarm for abnormal water pressure, fault display.
(2) It's kind of high-efficient machine with easy operation, high degree of automation.
(3) Between the drawing process without intermediate pulley and the guide wheel, it does not generate bending and torsion, and convenient threading
(4) Straight line drawing machine suitable for drawing large diameter, high strength and special shaped steel wire
(5) As the use of the frequency technology, changes in the larger context of patts of the compression ratio to meet the wide range of technology and high speed drawing.
(6) There is no relative sliding between wire and capstan. The quality of finished wire is much better.
Technical Parameters
Product Advantages 1. high efficiency, higher speed
2. easy operation;
3. much better finish wire quality due to less deviations , no torsion drawing
4. high performance cooling system-water cooling plus high pressure wind cooling
The domestic market share of stainless steel drawing machines takes more than 90% in stainless steelequipment industry area. For the overseas market,our equipment are exported to Japan, Russia, Brazil,Vietnamese, India and other countries.
Transmission system:two grade belt transmission,gearbox with hard tooth surface
way of speed adjusting:AC frequency conversion speed adjusting or Dc speed adjusting
Way of control:Profibus field bus control system, touch screen display, human-compute!communication,long distance diagnose function
way of pay off:spooler pay off, over head pay off, spin pay off,duck mouth pay off
way of take up:spooler take up, coiler take up, can take up the wire without stop
main function: slow down to stop at setting length automatically, wire broken inspection and stop automatically, free combination of any block , slowdown to stop automatically when protection shield is open, show all kinds of fault information and the solution, inspection and control of all kinds of running information
Material :high,medium,low carbon steel wire, stainless steel wire, PC wire , bead wire,rubber tube wire, spring steel wire, welding wire,arc welding wire, flux cired wire and so on, electric wire.

Detailed Images

Name: capstan Material:cast steel after special treatment Hardness: more than 65HRC	Name: spool take-up machine Feature: steady running with high speed First capstan OTO type on request First double capstan to accumulate wire Coil take-up machine on request Dead block coiler or drawing coiler to choose

Packing & Delivery

FAQ
1, What is your strong point in this machine ?
Q: We have several models of wire drawing machine for your choice. Most important, we cooperate with wire factories.
We have rich experience in wire prouction which can make your worker to use the machine more earlier and quickly
2. I do not know how to make chocie for these machines, can you help to choice ?
Q: Be sure, it is our honor, you tell us which size of wire you want to do ,we will customised suitable machine as your requirement and conditions
3. Quality how to guarantee ?
Q: Our machine main frame 1 year. 24 online servie, any problems you have, welcome to contact me at first time.
4. If we can visit your factory ?
Q: Be sure, you can visit our factory ,also can visit our cooprated wire factory for learning.
5. If we recevie machine, but have problem,how to do ?
Q: At first time, we will check machine and solve it. If our problem, we will resposiable for it.
But to be honor it that our machine do not have problem untile now.

---
