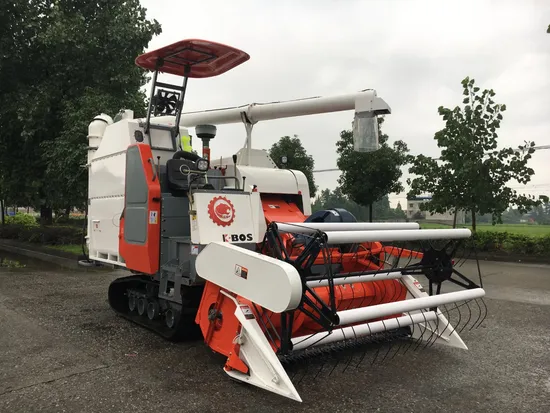

4LZ-4.0Z Combine Harvester, is suitable for rice, wheat, rape seeds and other granular crops, its widder rubber track with teeth, and with optional choice adjustable thresher top cover, it performance very good in different field and different crops..
This machine is easy for operation and maintence, it is a safety and energy-saving machine. Product Parameters
| Overall Dimension | Length×Width×Heights ( mm ): 5100×2600×2450 |
| Weight (kg) | 3000 |
| Feeding Capacity( kg/s ) | 4.0 |
| Harvesting Capacity(hm²/h): | 0.4-0.75 |
| Engine | Engine Model: 498BT/BZT/L; 4C6-88M22 |
| Rated Power ( kw/hp ): 65/88, 55/75 (Alternative) |
| Type: Water-Cooled, 4-Cylinder, DI-Injection, Vertical Diesel. Turbocharged Engine. |
| Driving System | Crawlers(mm): 90×51×450, 90×51×500 |
| Minimum Ground Clearance (mm): 280 |
| Type of Gearbox: Hydraulic type + HST(3F, 3R) |
| Cutting header | Pickup Reel: Type:Tooth ( off-centre ); Diameter( mm ): 900; Nos: 5 |
| Cutting Bar Length ( mm ): 2228 |
| Type of Cutting Bar Auger: Screw Conveying. |
| Rape Seed Extension: Optional |
| Threshing & Separating | Threshing System: Spiked Tooth Axial Flow |
| & Cleaning System | Threshing Cylinder Size Diameter × Length ( mm ): 620×1700 |
| Vibrating Sieve: Adjustable sieve or Round hole sieve |
| Fan: Type: Swirl; Diameter( mm ): 405; Nos: 4 |
| Thresher Top Cover: Adjustable |
| Grain Storing | Option 1: Big Grain Tank with Unloading Auger, Capacity ( L ): 1600 |
| Option 2: Small Tank Manual Operation. |
