Basic Info.
Certification
GS, CE, RoHS, ISO 9001
Product Machine

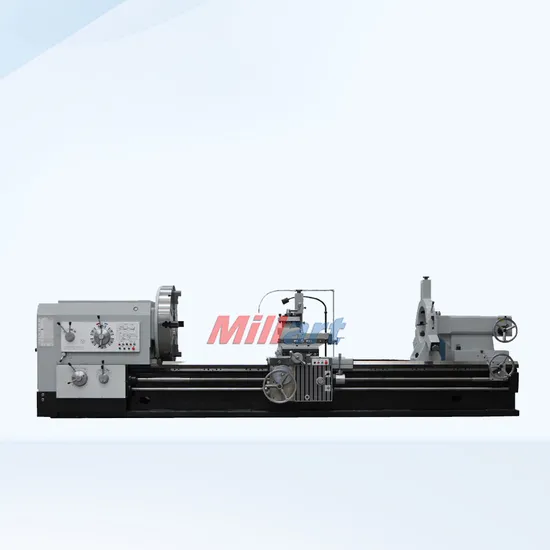

Lathe Machine
Max Swing Over Bed
1400mm
Max Swing Over Carriage
1000mm
Transport Package
Plywood Case
Specification
2250*2050*4600mm
Production Capacity
200units/Month
Product Description
Product description:
Technical parameter :
Feature :
This lathe are suitable for turning internal and external cylindrical, conical and swing surfaces as well as various metric, inch, module and diametric pitch threads.They can also be used for broaching oil grooves and keyways. There are also following features:
1. Box type internal structure, of high rigidity , with hardened guideway. The precision is stable.And can carry out strong force cutting.
2. On apron,there is a device, operated by a single lever, used for rapid traverse of the carriage.
3. The saddle guideway is glued by 'TSF' soft belt wear resisting materials.
4. The top slide can be used independently for turning of short cone, in combination with longitudinal feeding, it can also turn long taper surface.
Technical parameter :
Specifications | unit | CW61140B |
Max swing over bed | mm | 1400 |
Max swing over carriage | mm | 1000 |
Center distance | mm | 1500,2000 to 15000 |
Spindle bore and nose | mm | 130 C15 |
Spindle taper | mm | MT6 |
Spindle speed and steps | r/min | CW:21 steps 3.15-315 CCW: 12 steps 5-400 |
4 jaw chuck diameter | mm | 1000 |
Longitudinal feed and range | mm/r | 56kinds 0.1-12 |
Traverse feed and range | mm/r | 56kinds 0.05-6 |
Rapid moving speed | mm/min | 3740 |
Lead screw pitch | mm | 12 |
Metric thread | mm | 44kinds 1-120 |
Inch thread | t/in | 31kinds 28-3/8 |
Module thread | mm | 45kinds 0.5-60 |
Diametral pitch thread | DP | 30kinds 56-1 |
Cross slide travel | mm | 700 |
Top rest travel | mm | 300 |
Tool post | | 4 positions |
Tool shrank size | mm | 45X45 |
Tail stock sleeve dia | mm | 140 |
Sleeve travel | mm | 300 |
Sleeve taper | | MT6 |
Main motor power | kW | 22 |
Rapid feed motor power | kW | 1.5 |
Coolant pump motor power | w | 125 |
Machine width and height | mm | 2250X2050 |
Machine length |
1500 | mm | 4600 |
3000 | mm | 6100 |
4000 | mm | 7100 |
5000 | mm | 8100 |
6000 | | |
Machine net weight |
1500 | kg | 11250 |
3000 | kg | 12300 |
4000 | kg | 13300 |
5000 | kg | 14300 |
6000 | | |
Max loading capacity |
1500 | kg | 6000 |
3000 | kg | 6500 |
4000 | kg | 7000 |
5000 | kg | 7500 |
6000 | | |
Standard accessories:
Three Jaw Chuck and Adapter
Four Jaw Chuck and Adapter
Face Plates
Steady Rest
Follow Rest
Oil Gun
Thread Chasing Dial
Reduction Sleeve
Dead centers
Work lamp
Coolant system
Foot brake
Operate tools
Operation Manual
Optional accessories:
Taper turning attachment
Lead Screw Cover
Tool post cover
Chuck cover
Quick change tool post
Live center
DRO Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.
Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
>>
