Best Price High Precision Land Survey V90plus GPS Base and Rover Rtk GPS

Product Description

Key Features :
1.Dual-frequency RTK GNSS.
2.555-channel GPS+GLONASS+SBAS+GALILEO
3.Integrated UHF+GSM/GPRS+Bluetooth.
4.Offers tilt survey with a maximum tilt angle of 30 degrees.
5.Supports electronic bubble calibration
6.Standard Rinex data and HI-TARGET raw data recorded simultaneously.
High Precision 2022 new GNSS RTK hitarget v90plus for Land survey Surveying Instrument GPS RTK Channels 555 rtk gps

With a hi-tech, fully integrated design, the conveniently sized TS5 is one of the most flexible choices for any measuring task. Built-in Linux operating system, pre-loaded multiple smart applications such as tilt surveying, electronic bubble calibration, NFC , TS5 GNSS system provides surveyor industry-leading GNSS solutions.
iHand30 Controller:
Default Configuration
The iHand30 is designed for intelligent RTK with NFC sensor, a durable keyboard,ultra-long battery life and sensitive touchscreen,preinstalled free and intelligent Hi-Survey software. Hi-Survey software is the first high-precision survey software of Hi-Target running on the And roid platform,supports tilt survey and electronic bubble, can perfectly cooperate with TS5.
Specifications Of iHand30:

Hardware Configuration	OS: Android 10
	Processer: 2.0GHz, 8 core
	Storage: RAM 2G, ROM 16GB (up to 128GB extension TF card)
	Display: 3.7'', 640 x 480, sunlight readable with touch screen
	Camera: 8MP, tag available
	Sensors: G-sensor, E-compass, barometer,light-feld sensor, gyro
Communication	Cellular mode: Dual SIM card, dual stand-by
	Cellular network: 4G TDD-LTE, FDD-LTE,WCDMA, GPRS
	Wi-Fi: IEEE 802.11b/g/n, 2.4GHz/5GHz
	Bluetooth: V2.0/4.0
	USB: Type-C, supports OTG NFC
Physical	Weight: 440g(within battery)
	Size: 208mm*83mm*24mm
	Temperature: -20ºC ~ +55ºC(Operating);
	-30ºC~ +65ºC(Storage)
	Free-fall: 1.2m
	Water/Dustpoof: IP67
GNSS Features	GNSS: GPS, GLONASS, AGPS, 20 channels
	Update rate: 1Hz
Power Supply	Battery: Removable 3.7V lithium battery,5200mAh
	Duration: 15 hours

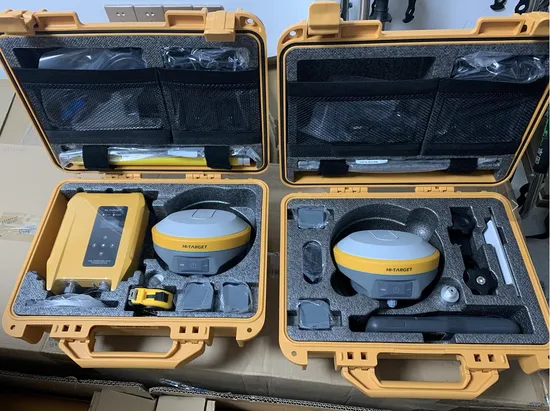

Accessories of V90plus:

V90plus specification
Channels	555 Channels
Satelite Tracked	GPS:L1, L2C/L2P, L5
	BeiDou:B1, B2, B3
	GLONASS: L1C/L1P, L2C/L2P
	Galileo:E1 , E5A, E5B, E5AltBOC,
	QZSS:WAAS,MSAS,GAGAN,IRNSS
	SBAS: L1C/A, L5
Static and Fast static Gnss Surveying
Horizontal	2.5mm+0.5ppm RMS
Vertical	5mm+0.5ppm RMS
Post Processing Kinematic (PPK / Stop & Go ) GNSS Surveying
Horizontal	1mm+1ppm RMS
Vertical	2.5mm+1ppm RMS
Initialization time	Typically 10 minutes for base while 5 minutes for rover
Initialization reliability	typically > 99.9%
High-precision static GNSS Surveying
Horizontal	2.5mm + 0.5ppm RMS
Vertical	5mm + 0.5ppm RMS
Code Differential GNSS Positionnig
Horizontal	25cm+1ppm RMS
Vertical	50cm+1ppm RMS
SBAS
Positioning accuracy	0.50m Horizontal, 0.85m Vertical
Real Time Kinematic (RTK)
Single Base	Horizonta:8mm+1ppm RMS
	Vertica:15mm+1ppm RMS
Network RTK	Horizonta:8mm+0.5ppm RMS
	Vertical:15mm+0.5ppm RMS
	Initialization time:Typically 2-10s
	Initialization reliability:Typically > 99.9%
Communication
Internal UHF Radio	Frequency: 410-470MHz
	Channels:116 (16 adjustable)
	Transmitting power:2W
	agreement:Hi-Target, Trimtalk450S, trimmarkIII, Transeot, satel-3AS, etc
	Working Range:3-5km typical, 8-10km optimal
HI-TARGET External UHF Radio(Standard)	Frequency: 403-473MHz
	Transmitting speed:Up to 19.2Kbps
	Channels:116 (16 adjustable)
	5W,10W,20W,30W adjustable
	Working Range:8~10km typical,15~20km optimal
Physical
Dimensions(W×H)	164mm×83.5mm
Weight	<1.4Kg
Shock and vibration	Designed to survive a 3m(9.84ft) natural fall onto concrete
Water/Dustproof	IP67
Humidity	100% condensing
Operation temperature	-45ºC~+75ºC
Storage temperature	-55ºC~+85ºC
Bluetooth	2.1
NFC	NFC flash even
A serial port	RS232 serial port
Energy consumption and working hours
Electrical	Power 6V to 28V DC external power input
	Power consumption≤3.5W
	Automatic switching between internal power and external power rechargeable,removable 7.4V,5000mAh Lithium-ion battery in internal battery compartment
Internal Battery Life	Static more than 10 hours
	RTK rover (UHF/GPRS/3G)6-10 hours
	RTK base more than 6 hours

Our services:
1.Any inquiries will be replied within 12 hours.
2.All our products have one year warranty, And we sure the products will be free from maintenance within warranty period.
3.All products will have been strictly quality checked in factory before sending out.
4.we can providing instrument technology training
Packaging & Shipping
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS,China Air Post.
You can also choose your own shipping forwarder.
About payment:
Generally, we accept Trade Assurance, Irrevocable LC at sight, Advance T/T, Escrow and West union.If you prefer other payment terms, please let us know.
Return and warranty:
1.All products are inspected before shipment, if you are not satisfactory with the purchase,you can exchange the items in one week,and you must contact us within 24 hour of receipt of the products.
2.The shipping charges are not refundable and the customer should be responsible for all the charges of return and reshipping.
3.For our majority products (Auto level, Theodolite, Total Station) we are offing 1 year warranty;
4.For small issues like missing or damaged part, key board, please send us the photos, we will send the required part and related instructions to you for free;
5. For big issues in one year warranty like EDX board, main board issue. We could only ask you to send the instrument back to us. Normally we will have it fixed in 10 working days and send back to you. You and we shall take care of the corresponding shipping cost on each side. For big issues out of one year warranty, the customer should be responsible for all the cost.

---
