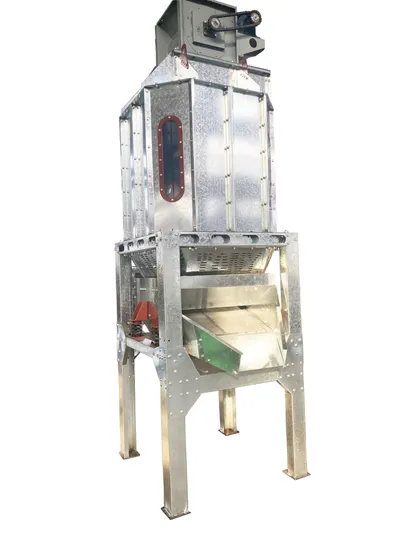

5-6 Ton Per Hour Biomass Pellet Cooler Machine New Galvanized Cooler

Product Description

5-6 Ton Per Hour Biomass Pellet Cooler Machine New galvanized Cooler Product Description
New galvanized Cooler :Adopting counter flow cooling theory, pellet can be cooled fully and equally.
Slide valve discharging is used to make the operation stable and the material discharging easy and smooth.
The temperature of cooled pellet isn't 3-5ºC higher than room temperature.
Cooler and Separator include cooling machine and screen separator. Air-cooling machine easy to operate and have low expense, very suitable for water shortage area. It can working in condition with high temperature, high humidity and dustiness.
New galvanized Cooler Characteristic:To cool the pellets from high temperature into lower temperture. The galvanized cooling machine has the advantages of high corrosion resistance and long service life.
simple structure, small volume, light weight, low heat resistance, large heat exchange area etc.
Screen separation machine divide raw materials into different size, Make relative motion between the diffuse stuff and screen. Separate the finished pellets and diffuse pellets at once, Convenient for the packing machine working.
Product Parameters

Model	TLN-15	TLN-20
Output(T/h)	5-8	8-12
Cooling Volume	4	6
Power(kw)	3+1.1	3+37+2.2
Cooling Time(minute)	No less than 6-10min
Cooling Temperature	No higher than room temperature 3-5ºC
