US$2,150.00-2,560.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
One Cylinder Hydraulic Lift
Driving Motor Number of Mechanical Lift
1
Double Cylinder Lift Type
Planer-type
Shearing Lift Type
Big Shear Type
Car Max Lifting Height
1700mm
Thickness of Post Material
4.5mm
Second Rise Height
300-490mm
Unlock Way
Pneumatic Unlock
Transport Package
Steel Frame
Production Capacity
50000PCS/Year
Product Description

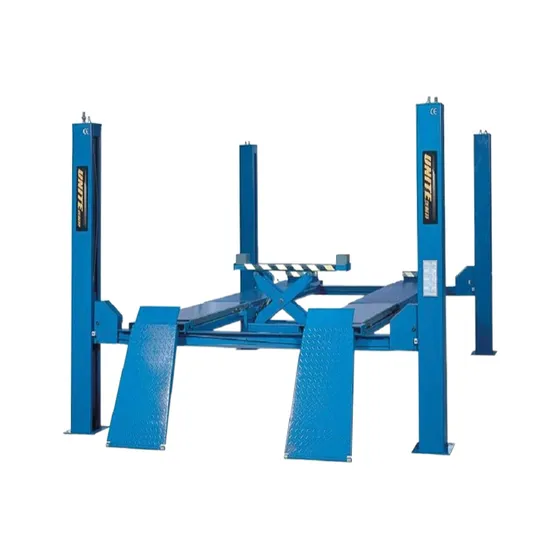

Hydraulic 4-Post Car lift Work With Wheel Aligner
Product Parameters Technical Parameter:
Lifting capacity
| 4000kg
|
Lifting height
| 1700mm
|
Minimum height
| 200mm
|
| Platform length | 4600mm |
Overall length
| 5850mm
|
Overall Width
| 3400mm
|
Runway Width
| 530mm
|
Lifting time
| ≤60s
|
Lowering time
| ≥30s
|
Motor
| 220V/380V 50Hz/60Hz 1Ph/3Ph 1.8Kw
|
Gross weight
| 1200Kg
|
Motor Power:
| 2.2KW
|
Cubic Meter:
| 3CBM
|
Loading in Container
| 8 pieces / 20' container
|
Detailed Photos
Main Features Features of High capacity hydraulic 4 ton car lift price for car wash :
1> Hydraulic drive, cable transmission, steady lifting, level is adjustable.
2>Lifting operation is convenient, no diarrhea, leakage oil pressure stability, low noise, power strong.
3> Hydraulic oil cylinder adopt imported sealing ring, wear-resisting durable, reliable sealing, long service life.
4> Equipped with overload protection, short line protection and self-locking protection in the process of rise, each column has the multi-function safety devices such as locking device.
