60m3/H Concrete Batching Palnt Form China

Product Description

Product Description of Concrete Batching Plant
The basic structure of concrete batching plant is feeding system, measuring system, mixing system, electrcal system and auxiliary equipment
(such as air compressor, water pump, etc).They are used to trasport, feed,store, batch, weigh, mix and discharge the concrete raw materials:
cement, water, sand, crushed stone, admixture and additive.
As a professional manufacturer of concrete mixing plant, we have the following advantages:
1. ISO, CE, SGS, BV certificate;
2. We are a supplier of Lafarge and Thiess;
3. 30-year production experience, 10-year OEM experience;
4. 500 workers to ensure quick delivery;
5. 30 engineers to design special concrete mixing plants for you, such as concrete mixing plant that can work in very low or very high temperature
environment.

Specification of HZS60 concrete mix station

Model	HZS60
Rated Productivity	60m3/h
Main Mixer	JS1000
Max. Aggregate Diameter	80mm
Capacity of Aggregate Bin	4×8.38m3
Aggregate Conveying Mode	Flat Belt Conveyor
Aggregate Weighing Precision	4X 3000Kg ±2%
Cement Weighing Precision	1500Kg ±1%
Fly Ash Weighing Precision	600Kg ±1%
Water Weighing Precision	600Kg ±1%
Additive Weighing Precision	50Kg ±1%
General Power	120Kw
Total Weight	48T
Outline dimension (L*W*H)	33.8m×14.8m×10.8m
Discharging Height	3.8 m
Powder Silos (for customers choice)	The capacity and number of silos as well as the configuration of silo accessories vary with customers' demands.
Screw Conveyors (for customers choice)	Usually, φ273mm screw conveyors are used.

Product Advantages

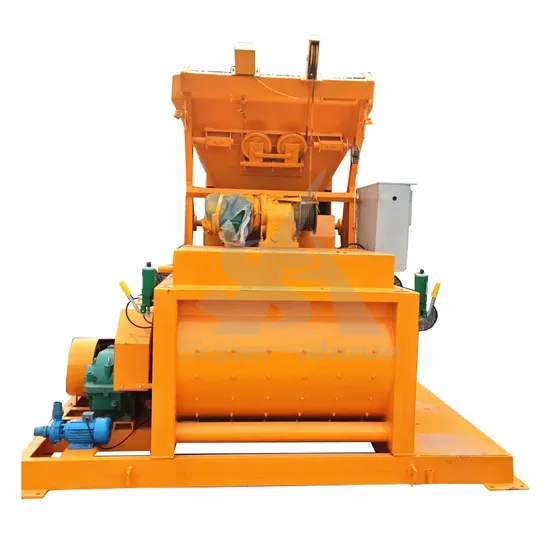

1. High Uniformity: The double horizontal shaft mixing system is specially designed to improve the strength and uniformity of concrete, no
deposition or segregation.
2. High productivity: The reasonable matching of proportioning system and
conveying system ensures the mixing plant to achieve its ideal productivity.
3. Reliable and convenient operation: Dual-computer control system, auto/semi-auto/manual switchable.
4. Environment Friendly: The powder is in a closed condition during the conveying and weighing process. Both the mixing plant and the
powder silos are equipped with imported dust collectors to improve dedusting efficiency.
Features of Concrete Batching Plant
1. Great production performance.
2. High quality and precise concrete production.
3. Different layout options according to customer requirements.
4. Possibility of different kinds of concrete production with different type of mixers.
6. Easy maintenance and low operating cost
6.Get ISO Certification
Technical Specification of Concrete Batching Plant

MODEL	HZS25	HZS35	HZS50	HZS75
Capacity (m3/h)	25	35	50	75
Aggregate Feeding	Skip Hopper	Skip Hopper	Skip Hopper	Skip Hopper
Aggregate Size(mm)	60/80	60/80	60/80	60/80
Discharging Height(mm)	3800	3800	3800	3800
Mixing System	JS500	JS750	JS1000	JS1500
Aggregate System	PLD800	PLD1200	PLD1600	PLD2400
Cement System	1	1	1	1
Water System	1	1	1	1
Control System	1	1	1	1
