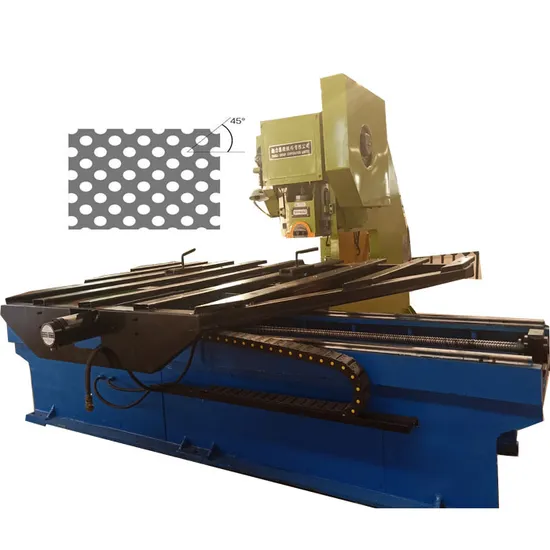

CNC PLC Control System Hole Pounding Mesh Machine

Product Description

Hole punching mesh machine Product Description
The metallic material of pounding:
iron plate, stainless steel plate, aluminum plastic composite panel,cuprum plate,aluminum plate, galvanized plate etc.
The shape of the hole:
round hole, long round hole,square hole, trigonometrical hole,bulgy hole(scale hole), diamond hole, hexagonal hole, crossed hole etc..
Increased throat deep and working area.
I. Technical parameter

Pounding plate	1.22*2.44m
Pounding thickness	0.1-4mm
Mesh size	according the mold, ( mold price: USD1000)
Times of pounding	60-90/min
Pressure	250KN
Power	7.5KW
Space requirement	6*3m
Weight	8T
Parts including	pressure machine, feeding system, control system

Operation

computer control, software: Chinese--English

II. Other instruction about the machine and service
Ø The warranty time: one year ( accessory parts)
Ø Material of mould: tungsten steel or Cr12
Ø Worker needed: one worker can operated two or three sets machine
Ø All the accessory parts is GB national standard
Ø The mould is manufacture according the customer's requested.
III. Detail for the pressure machine:

Model		SHP-40
capacity	KN	200
Nominal force	mm	2.5
Slide stock	mm	80
Stock times	/min	60
Max. Die height	mm	180
Die height adjustment	mm	70
Motor power	KW	5.5
Outside size	mm	1790×990×2288

IV.The uses of hole-punching mesh
1)barrier of environmental noise control
2)With sound insulation sound-absorbing board
3)Building ceiling, sound absorption of wallboard
Coil sheet feeding type punching machine
Company profile 1.Anping Shenghua Metal Wire Mesh Machine Factory(Anping County Taojin Wire Mesh Machine Co.,Ltd.) is belong be Shenghua Group, we have engaged in wire mesh machine manufacture over 30 years, our company from only 1500m2 small factory to now 40000 m2.
2.We are produce and sell kinds of wire mesh machine, like chain link fence machine, welding wire mesh machine, expanded plate mesh machine, weaving machine, razor barbed wire machine, perforated mesh machine and so on
Customer Visit
