LDPE PP Coating Grades1600mm Kraft Extrusion Laminating Machinery

Product Description

Product Description Usage:
Extruding flow membrane & cartoons(brown packing paper, paper for cup, good quality paper),clothing metal foil, plastic bags as well as other synthetical material.
MAIN FEATURES:
SJLM-800-2000 Serial healthy environmental shower membrane machine and paper plastic composition unit(non-adhesive composition unit)which integrare winding, drying,surface process, composition, edge-cutting,adsorption dege with rewinding ate adopted with photo-electricityt tracking,electric-flower process; linespeed length of material digital display;full autmatic etemal tension,temperature-automatic control etc advance technologies;
It is suitable for extruded plastic cast film (PE, TPU, EVA, TPE, etc.) and OPP film, PET film, aluminum film and other materials single-layer coating or coating compounding.
Scope of application: can be used for paper-plastic composite, plastic composite, aluminum-plastic composite, aluminum-plastic composite, etc., widely used in plastic film, food packaging pharmaceutical packaging, shoe materials, luggage materials and other industries and fields,
Product features
1. High-precision T-shaped touching head, finishing to ensure the uniformity of coating.
2. High-speed and high-efficiency mixing screw (German technology), according to the raw material attributes used by customers, design screw structure, can be equipped with static mixer and fluid pump, etc.
3. Independent design of pneumatic quick screen change, simple operation without material leakage, 360 degree second unwinding frame
4. The whole machine can adopt monotonous or PLC man-machine interface centralized control, mechanical and electrical integration design
5. The whole machine can be individually designed according to the different requirements of customers, with glued parts or baking channels or with printing, which can fully meet the different needs of customers.
6. It can be equipped with single extruder, double extruder, and multiple extruders to achieve multi-layer co-extrusion
Product Parameters

ITEM/TYPE	SJLM-800	SJLM-1000	SJLM-1200	SJLM-1600	SJLM-1800
Length of mold lip	900mm	1100mm	1300mm	1700mm	1900mm
Width of finished product	400-800mm	500-1000mm	600-1200mm	800-1600mm	900-1800mm
Max compounding speed	80-150m/min	80-150m/min	80-150m/min	80-150m/min	80-150m/min
Width kf shower film	0.01-0.1mm	0.01-0.1mm	0.01-0.1mm	0.01-0.1mm	0.01-0.1mm
L/D ratio for screw	35:1	35:1	35:1	35:1	35:1
Max. diameter for roll unwinding and rewinding	ø1300mm	ø1300mm	ø1300mm	ø1300mm	ø1300mm
Overall size	12000×6000×3200mm	12500×7000×3200mm	1300×8000×3200mm	12000×9000×3200mm	13000×12000×3200mm
Power	60kw	70kw	80kw	100kw	130kw
Compounding/mirror cool roll	ø510mm	ø510mm	ø510mm	ø510mm	ø510mm
Applicable for base material	BOPP BOPPET BOPA CPP CPE PAPER MPET VMPET

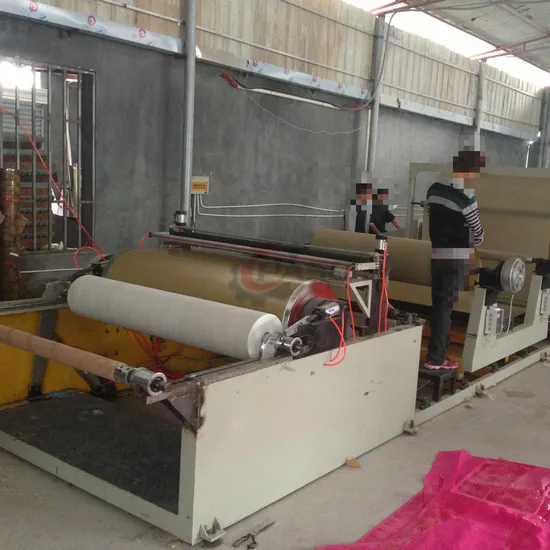

Detailed Photos Packaging & Shipping 1.Packaging: wooden pallet or film wrapped (Fumigation wooden case usually)
2.Delivery time: 5-35/55 days after receiving deposit, depends on order and machine condition.
3.Exporting seaport: Ningbo port ; Shanghai port
4.Payment: we appreciate T/T 30% deposit, 70% balance paid before dispatching; Western Union;L/C acceptable if your goverment policy required
5.Trade terms: ExW,FOB,CFR,CIF,Door to Door, DDU, DDP,
FAQ 1.Where is your factory Located
Our Factory Located in Ruian City ,Zhejiang Province ,China .
It is about 30minutes by air from Shanghai, around 5hours by train from Shanghai
2.What machines range we make & supply?
Our factory focus on manufacturing extrusion lines, complete bag production line, etc; OEM, ODM, with support of strong R&D team, we also help customer get best solutions for special equipments and plastic machinery;
3.How can we get satisfied machine in hand?
We will make test once machine in ready, to check every parts working condition and electrocircuit; will record relative photo and video for installation in your place.
3. What should we charge if we need engineer service in our country?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary (negotiable)
4. How long is your machine's warranty period?
All our machine have two years guarantee, starting from finished installation. we still keep service for whole life.
5. How could we do if the parts broken within warranty?
We would send the free replacement spare parts during the warranty date.

---
