| Model | TZ-3 | TZ-4 | TZ-6 | TZ-8 |
| Power (HP) | 20-35 | 40-55 | 60-75 | 80-1004 |
| Max. dump height (mm) | 2000 | 2100 | 2350 | 2350 |
| Max. dump distance (mm) | 900 | 900 | 960 | 1000 |
| Bucket rollback angle (degree) | 42 | 42 | 42 | 42 |
| Max. Unloading angle (degree) | 47 | 47 | 160 | 160 |
| Max. scraping depth (mm) | 100 | 140 | 46 | 46 |
| Lifting time to pivot pin(S) | 7 | 7 | 8 | 8 |
| Descending time (S) | 3.5 | 3.5 | 4 | 4 |
| Bucket capacity (m3) | 0.3 | 0.35 | 0.48 | 0.6 |
| TZ series tractor front end loader main performance and features: | |||||
| 1.Used in shoveling, stacking or short-distance transportation of loose material ,such as mud, sand, stone, garbage | |||||
| 2.Featured with compact structure, flexisbility, conveinent opration, and quick mounting / dismounting | |||||
| 3.Hydraulic transmission is used. It uses the hydraulic oil commonly with tractor. The hydraulic elements are standard , convenient for repair and service. | |||||

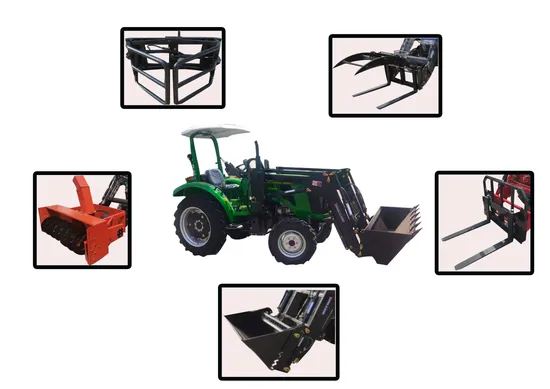

| 4.Different work devices are optional, such as combined buckets (4 in 1 bucket), grating cover bucket, pallet handler, timber grab and bale fork etc | |||||
| 5. Quick release design ensures the bucket can be easily removed and various other attachments fitted. | |||||
| 6.OEM service is acceptable, products can be customized. |
