Heavy Duty High Tensile Fiber Reinforced PVC Braided Air Water Hose

Product Description

Product Description Clear Braided PVC Hose Fiber Reinforced Braiding PVC Hose

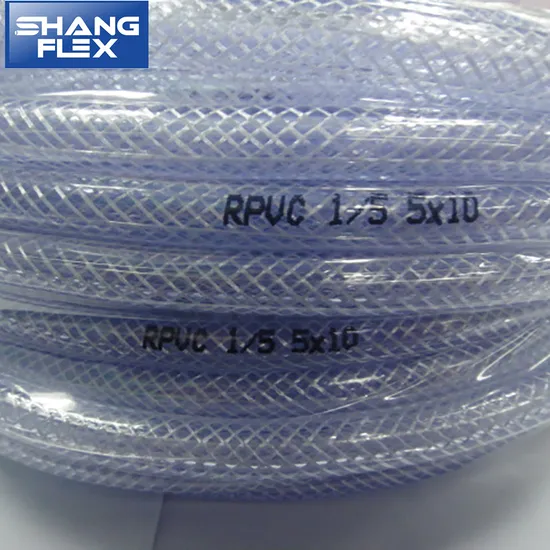

Detailed Photos PVC Fiber Reinforced Hose
Product Parameters Features:
100% virgin pvc inner tube and cover , polyester fiber braided reinforcement inside the wall is highly transparent , the medium inside are visible to the naked eyes. high working pressure resistant , burst pressure minimum 3 x working pressure including light duty , medium duty , heavy duty crystal , green , yellow , red , any color are avaliable . with UV stablizer , UV resistant temperature range: -5ºC to 70ºC food grade quality meet requirements of FDA , REACH , ROHS.
Applications:
1.delivery air , water , gas in residental , gardening , farm , ship , building ,industry , mining .
2.food grade hose can be used to delivery fresh water , milk , beverage , jam , liquor in food industry.
Light Duty - Specifications

Inner Diameter		Outer Diameter	Length	Working Pressure	Burst Pressure	Weight
Inch	mm	mm	Mtr/Roll	bar	bar	kgs/Mtr
5/32"	4	8	100	10	50	0.049
13/64"	5	9	100	10	30	0.057
1/4"	6	10	10	10	40	0.065
5/16"	8	12	100	10	40	0.082
3/8"	10	14	100	9	35	0.098
1/2"	12	16	50	7	20	0.115
1/2"	13	17	50	7	20	0.125
5/8"	15	19	50	6	20	0.14
5/8"	16	20	50	6	20	0.15
3/4"	19	23	50	4	12	0.17
3/4"	20	24	50	4	12	0.18
7/8"	22	27	50	4	12	0.25
1"	25	29	50	3	9	0.22
1-1/4"	32	48	30	3	10	0.43
1-1/2"	38	45	30	3	10	0.59
1-3/4"	45	55	30	3	10	1.02
2"	50	59	30	3	10	1.01

Heavy Duty Specifications

Inner Diameter		Outer Diameter	Length	Working Pressure	Burst Pressure	Weight
Inch	mm	mm	Mtr/Roll	bar	bar	kgs/roll
13/64"	5	10	100	12	40	0.076
1/4"	6	11	100	12	36	0.087
5/16"	8	13	100	10	30	0.105
3/8"	10	15	100	10	30	0.130
1/2"	12	18	100	9	27	0.185
5/8"	16	22	50	8	24	0.230
3/4"	19	25	50	6	18	0.270
7/8"	22	28	50	5	15	0.305
1"	25	31	50	5	15	0.340
1-1/4"	32	40	30	4	12	0.590
1-1/2"	38	46	30	4	12	0.690
1-3/4"	45	56	30	4	12	1.140
2"	50	62	30	4	12	1.380
2-1/2"	64	78	20	4	12	2.030
3"	76	92	20	4	12	2.750

Production Details:
Packaging & Shipping

Company Profile QINGDAO SHANGFLEX TECH CO.,LTD is located in Shandong , China . We supply OEM & ODM flexible hoses, covering PVC HOSE , RUBBER HOSE , DUCTING HOSE, PU TUBE , PNEUMATIC HOSE and HOSE ASSEMBLIES , COUPLINGS , FITTINGS, CLAMPS .
Our factory was established in 2010. There are 3 professional workrooms , 1 material granule production workroom , 1 assembly workroom, 3 standard warehouses , including 100 production lines ,150 skilled technicians ,30 senior technical personnel and 5 engineers. Annual output amounts to 50,000 tons and production capacity per month can meet 500 tons.
Our factory has got ISO9001:2008,ISO14001:2008. All products can be made as the requirement of American Standard , European Standard and Australian standards. FDA , REACH , ROHS , BS3746, AS2070 .
We have professional sales and servie teams. We have exported to more than 50 overseas countries and over 100 steady customers , covering America , Canada , Australia , United Kingdom , Brazil , Agentina , Indonesia , Malaysia , Turkey , UAE,South Africa ,etc.
We are reliable source of " Made in China " . We are professional manufacturer and exporter . Your every inquiry will be followed fast by professional staff.

Factory
Granuel Room
Laboratory
Workroom and Production Machine
Warehouse

Certifications

---
