OEM Universal Truck 3D Avm DVR Vehicular System Panoramic Car 360 Degree Camera Bird View Camera with Monitor

Product Description

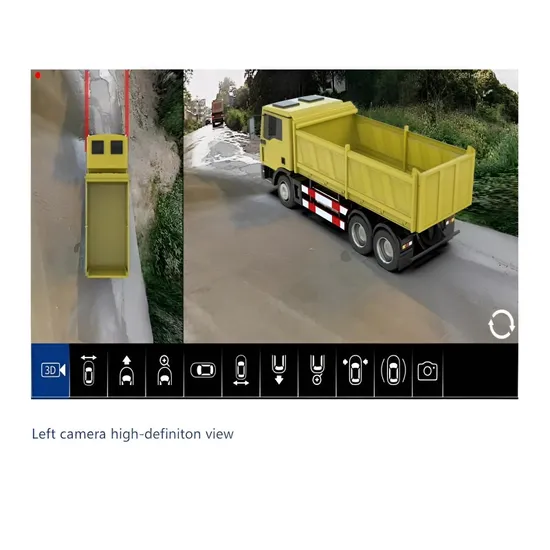

This equipment is a set of 6 wide-angle cameras installed around the vehicle that can cover all the field of view around the vehicle, and the multi-channel video images collected at the same time are processed into a 360-degree top view of the body around the vehicle, which is transmitted to the screen of the center console in real time. It is suitable for buses, cranes, long trailers, container trucks, fire trucks, forklifts, excavators and other vehicles. The IP69K is waterproof and can provide a 360°panoramic bird's eye view for various vehicles, even in harsh environments, so that 360° no-dead Angle monitoring is achieved.With powerful video recording function.
Product Description Universal Truck 3D Avm Dvr Vehicular System Panoramic Car 360 Degree Camera Bird View Camera With Monitor AVM Panoramic Surround View Display Integrated System (No Host Required) Around View Monitor-AVM Overview: The system captures images using multiple (four or six) ultra-wide-angle cameras. Special algorithms correct distortion and stitch the images to form a panoramic view of the surroundings.
Features:
Intelligent Stitching: Automatic and manual rapid stitching through GPS speed sensor and steering signal to automatically switch between 3D/2D driving image display modes.
Detection and Warning: Detects pedestrians and vehicles around the vehicle, providing 360° blind-spot-free collision prevention and safety distance warnings.
MCU Protocol: Exclusive MCU development protocol for CAN bus data interaction to meet various requirements.
User Control: Full touch control to switch any display mode, simple operation.
Automatic Switching: When the vehicle speed is below 25 km/h, the system automatically switches to warning screens and lane change assist warning screens, coordinating with external audio-visual alarms.
Technical Specifications Camera Inputs: Supports 4-channel AHD panoramic camera input, expandable to 4 additional monitoring cameras, and supports 16 radar probe inputs.
Communication Protocol: Supports CAN bus communication protocol.
Recording: Supports real-time recording, loop recording, and playback (SD card storage).
Display:
IPS widescreen for true color and fast response.
Industrial-grade, low-temperature-resistant DSP.
Resolution: 1024 RGB(H) x 600(V) dot.
Automatic brightness control for day/night mode to ensure driving safety at night.
Power:
Wide working voltage range: DC 12~36V.
Independent power output, load dump pulse voltage protection, external power polarity reverse protection.
Constant current and voltage protection for LEDs to prevent misuse and ensure product longevity.

---
