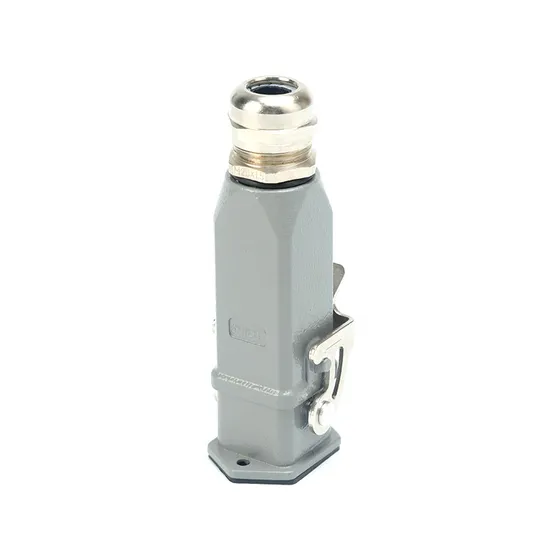

3pin 10A Ha Series Rectangular Connector for Mold /4pin Connector/ Heavy Duty Connector/Heavy Duty Power Connector/5pin Connector

Product Description

Cable entry protection:
1. Universal cable glands
2. Special cable clamp with strain relief,bell mouthed cable fitting and anti-twist devices
3. Cable gland with normal or multiple seal
4. Extensive range of accessories Hoods:
1. low or high construction
2. Top or side cable entry .1 or 2 locking levers Male insert with:
1. screw terminal or crimp terminal(order contacts separately) or cage-clamp terminal Female insert with:
1. screw terminal or crimp terminal(order contacts separately) or cage-clamp terminal Housing:
1. Housing(bulkhead mounting) with or without thermoplastic or metal covers,1 or 2 locking levers
2. Housing(surface mounting) low or high construction with or without thermoplastic or metal covers,1 or 2 locking levers,1 or 2
cable entries
3. Hood(cable to cable) low or high construction for cable to cable connections Accessories:
1. Protective covers available
2. Code and guide pins for coding
3. Special insert fixing screws for use without hoods and housings
4. Label according to CSA-approval Characteristics Covers wide range of cross sections
Screw termination with wire protection

Insert
Number of contacts	3+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage conductor	230/400V
---Rated impulse voltage	4kV
---Pollution degree	3
Working voltage acc. to UL/CSA	600V
Insulation resistance	≥1010Ω
Material	polycarbonate
Limiting temperatures	-40ºC...+125ºC
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500

Characteristics: Two levers at the bottom part of the housing
* Secure locking ensured by four locking points
* Minimal space requirements and high locking force
* Ideal for laterally arranged connectors Two levers on the hood
* Secure locking ensured by four locking points
* Minimal space requirements and high locking forces
* Ideal for laterally arranged connectors and surface-mounted housings with caps One lever at the bottom part of the housing
* Two locking points along the longitudinal axis
* Easy to access even with cable entering laterally
* Cap on the upper part of the housing can be locked

Hood&Housing
Material	aluminium die-cast
Colour	Grey
Locking element
---Lever type	metal elastic pressing
---Material	Stainless steel
Hoods/Housing sealing	NBR
Limiting temperatures	-40ºC...+125ºC
Flammability acc.to UL 94	V0
Degree of protection acc.to EN 60529 for coupled connector	IP65

Cable gland
	Metal cable gland	Plastic cable gland	Hose cable gland
Material:	Nickel-plated brass	Nylon	Nylon
Seal Material	NBR	NBR
Degree of protection	IP68	IP68	IP54
Temperature range	Stat:-40ºC-100ºC Dyn:-20ºC-80ºC	Stat:-40ºC-100ºC Dyn:-20ºC-80ºC	-40ºC-+150ºC

Zhejiang Smico Electrical Technology Co.,Ltd is a company specializing in heavy duty connector Research,production and sales
as one integrated high-tech enterprises,with many years of professionaland technical strength and long-term development goals.
In the company"to the quality ofsurvival,to the credibility of development"and absorbing the international advanced technology
and design concept,is committed to providing high quality products and the best service,make the products on the market can
be a leading position.

---
