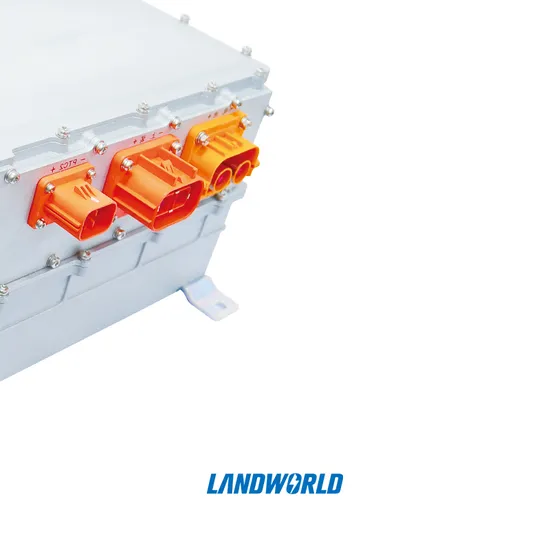

Product Features: Body Size: 350x214x197mm Weight:≤18KG Cooling method:Liquid cooled, flow rate≥8L/min IP rating:IP67 Support inverter function Support on-line upgrading and fault diagnosis Compatible with single and three phase charging station Full digital software design, Redundant protection function design
| Items | Technical Specification | Remarks |
| OBC Electrical Features |
| Nominal output power | 6.6KW | |
| Input Voltage | 85-265VAC | |
| Input current | 32A Max | |
| Power factor | ≥0.99(220Vac @ full load) | |
| Output voltage range | 400-650VDC | Can be adjusted according to battery voltage |
| Max output current | 14A | |
| Efficiency | ≥94% | Nominal voltage |
| Voltage accuracy | ±1% | |
| Current accuracy | ±1% | |
| Inverter features |
| Input voltage range | 400-650VDC | |
| Output voltage | 220Vac(±5%)/50Hz | |
| Power | 6.6kVA | |
| Efficiency | ≥94% | |
| Output harmonics(THDv) | <3%(Linear load) | |
| Dynamic response | 60ms(Linear load) | |
| Leakage current protection threshold | ≤30mA | |
DC/DC Electrical Features |
| Input voltage | 400-650VDC | |
| Output current | <16A @240Vdc full load | |
| Efficiency | ≥94% | |
| Output voltage | 9-16V | |
| Nominal voltage | 14V | |
| Nominal output current | 180A | |
| Nominal power | 2.5KW | |
| Peak power | 2.8KW | |
| Voltage ripple | 300mV Max | |
| Other Electrical Features |
| Operating temp. | -40-85ºC | Coolant inlet temperature |
| Low voltage wake-up | 12Vdc&200mAmax(WAKE_UP signal) | Wake up BMS/VCU |
| Wake-up mode | CAN,AC,CC/CP | Support reserve charging |
| CAN communication | CAN-BUS | |
| Static current | ≤1mA | Sleep mode/ consume battery current at stop status |
| Protection | Input OVP, UVP, output OVP, UVP, OTP, OCP, output short circuit protection, communication fault protection |
| EMC | GB/T18387-2008,EN 55022 |
