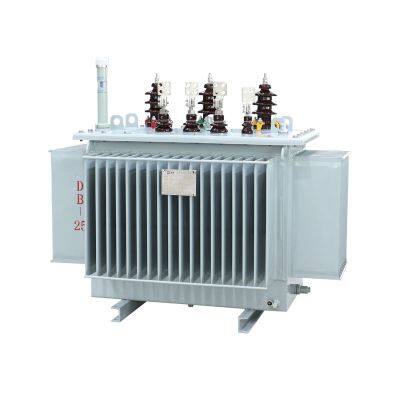

Factory direct sales of 1000kva, 500kva, 400v to 22kv, 20kv, 33kv step-up three-phase transformer, oil price, power transformer

Product Details

Product Description

Product Description
transformer
OIL IMMERSEDTRANSFORMERS
TSTY has been specializing in producing a range of oil-immersed transformers for 13 years, from the S9 to S22 series. With voltages ranging from 6kV to 35kV and capacities from 15kVA to 10,000kVA, we can meet your needs in any scenario or application. Even the smallest bolt is made of hot-dip galvanized material, which ensures it won't rust for 30 years.
Product Advantages
1.Brand-new mineral insulating oil without PCB.
2.Low temperature rise for long-term full-load Operation.
3.Compliant with IEC standards and holds CE/ISO Certificates.
4.Fully galvanized coating to prevent trust.
5.Professional design experience with exports to 60 Countries.
We can also customize according to your demand!

Technical Parameter for S11 Series 6kv-llkvNo-load Voltage Regulation Trans formers
Rated Capacit Y(KVA	Voltage Combination			Connection Group Symbol	No- load Loss (W)	Toad Loss (W)	Impedance Voltage(%)	No-load Current (%)	L*W*H(mm	Gauge Horizonta 1*Vertica (mm)	Active parts Weight (kg *Oil Weight (kg)	Tota Weigh (kg)
	High Voltag e (KV	Tapping Range of High Voltage	Low Voltag e (KV)
30	6 6.3 10 10.5 11	±5% ±2x2.5%	0.4	Dyn11 Yzn11 Yyn0	100	630/600	4	2.8	980*735*1145	400*400	178*78	355
50					130	910/870		2.5	1017*758*1205	450*400	240*92	415
63					150	1090/1040		2.4	1035*785*1285	450*400	285*105	505
80					180	1310/1250		2.2	1065*800*1290	450*400	330*110	540
100					200	1580/1500		2.1	1072*820*1305	450*400	345*116	590
125					240	1890/1800		2	1155*1105*131	450*400	415*135	705
160					280	2310/2200		1.9	1235*850*1535	550*550	485*135	835
200					340	2730/2600		1.8	1282*860*1557	550*550	582*168	965
250					400	3200/3050		1.7	1310*940*1605	550*550	695*210	1135
315					480	3830/3650		1.6	1465*1120*191	660*650	855*255	1520
400					570	4520/4300		1.5	1440*1165*172	660*650	950*295	1590
500					680	5410/5150		1.4	1510*1250*184	660*650	1150*320	1905
630					810	6200	4.5	1.3	1650*1140*192	660*650	1500*435	2015
800					980	7500		1.2	2125*1175*231	820*820	1910*760	3510
1000					1150	10300		1.1	2150*1380*257	820*820	2125*880	3850
1250					1360	12000		1	2355*1485*257	820*820	2605*960	4610
1600					1640	14500		0.9	2335*1750*263	820*820	3125*1150	5420
2000					1940	18300	5	0.4	1940*1400*170	820*820	2420*780	4200
2500					2290	21200		0.4	2050*1480*180	820*820	2560*780	4680
Note:Parameter is for reference only,if any changes should follow the factory technical data.

---
