MP Series Planetary Concrete Mixer in China MP500/MP1000/MP2000

Product Description

MP Series Planetary Concrete Mixer In China MP500/MP1000/MP2000
Sizes of FOCUS Planetary Concrete mixer, cement mixer:
MP500, MP750, MP1000, MP1500, MP2000, MP2500, MP3000, etc.
Output volume: 500L, 750L, 1cubic meter, 1.5cbm, 2cbm, 2.5cbm, etc.

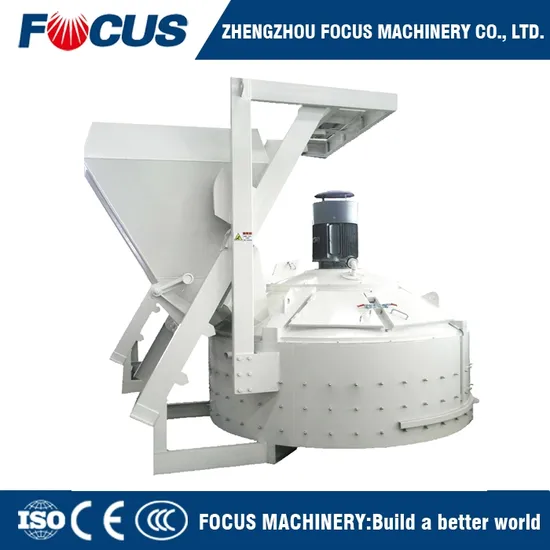

FOCUS vertical shaft concrete mixer/planetary concrete mixer:
FOCUS MP series of planetary mixers with vertical shafts allow the rapid mixing of all types quality concrete(dry, semi-dry and plastic). The great versatility of the FOCUS MP vertical shaft planetary concrete mixer enables it to be used not only in the production of concrete, but also in the mixing of materials for the production of glass, ceramics, refractory materials, etc.
Main features of planetary concrete mixers are as follows: 1.specially designed mixing facility make the mixing faster and more homogeneous, and the Ni-hard cast blades are more wearable.
2.Equipped with a mechanical coupling and a hydraulic coupling(option), which protect the transmission devices from overloads and impacts.
3.The reduction unit of the vertical shaft concrete mixer/ planetary concrete mixer, specifically designed for a balanced distribution of power to the various mixing devices, ensures a low-noise rotation without backlash even under severe working conditions.
4.Access facility for maintenance and cleaning.
5.High pressure washout system and moisture sensor SONO-Mix based on TDR are options.
6.From optimal model selection to customerized vertical shaft concrete mixer/ planetary concrete mixer for special application situation, FOCUS can offer a full range of technical support and maintenance services.
FOCUS vertical shaft concrete mixer main parameters:

Model parameter	MP 500	MP 750	MP 1000	MP 1500	MP 2000	MP 2500	MP 3000
Discharge vol.(L)	500	750	1000	1500	2000	2500	3000
Feeding capacity(kg)	1200	1800	2400	3600	4800	6000	7200
Charging vo.(L)	750	1125	1500	2250	3000	3750	4500
Mixing power(kw)	18.5	30	37	55	75	90	110
Diameter of mixing drum(mm)	1900	2200	2500	2800	3100	3400	3400
Mixing arms&blades	1x2	1x3	2x2	2x2	3x2	3x3	3x3
Side scraper&discharge scraper	1/1				1/2
Discharging power(kw)	2.2	2.2	3	3	4	4	4
Weight(kg)	2500	3500	5500	6500	8500	10500	11000

---
