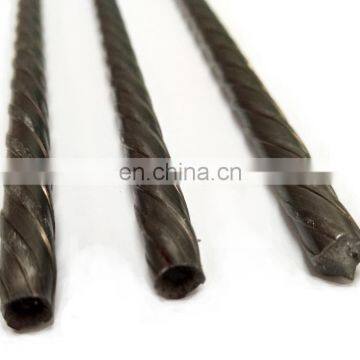

PC STRAND.
structural: 1*3/1*7/1*19
Dia:9.53mm, 11.11mm, 12.7mm, 15.24mm,15.7mm
Characteristic: high tensile, low relaxation
Standard: ASTMA416; BS5896;GB/T 5224
Tensile strength: 1860MPa
Low relaxation: 2.5%, Coil weight: (2-3.5)MT
Packing: standard export anti-rust packing(Wrapped by steel strips, waterproof cloth sheet, wooden pallet)
Detailed Images
PC STRAND Production Process Flow .
Raw material -Acid washing-----Wire Feeding----Wire drawing---wire stranding ---Heat treatment---Packing--Loading---delivery
PC strand.
ASTM A416
BS5896
JIS G3536
GB/T5223
EN10138
Unbonded steel strand.
unbonded steel strand
Left and right hand lay
Epoxy coated strand.
Epoxy coated strand
Inner diameter: 760mm
Outside diameter: 1400mm max
Coil's width: 760mm
Coil's Weight: 2500-3500kg
Packing & Delivery
PC STRAND packing & delivery details
(1)In Container.
(2)Coil at customer's requirement. (water-proof packing with wood pallets)
(3)Each coil is strapped by steel bands at 8 places, fully wrapped with anti-rust plastic & P. P woven sheet with pallet and strapped again by steel bands at 6 places.
Specification of pc strand: Standard of ASTM416
|
| mm
| mm
| mm2
| KG/1000m
| KN
| KN
| Min.
|
| Nominal Diameter
| Diameter tolerance
| Nominal area
| Nominal weight
| Min.Breaking strength
| Min.Yield strength
| Elongation
|
250
| 0.375
| 9.53
| ±0.4
| 51.61
| 405
| 89
| 80.1
| 3.50%
|
0.438
| 11.11
|
| 69.68
| 548
| 120.1
| 108.1
|
|
0.5
| 12.7
|
| 92.9
| 730
| 160.1
| 144.1
|
|
0.6
| 15.2
|
| 139.35
| 1094
| 240.2
| 216.2
|
|
270
| 0.375
| 9.53
| +0.65
| 54.84
| 432
| 102.3
| 92.1
|
|
0.438
| 11.11
| -0.15
| 74.19
| 582
| 137.9
| 124.1
|
|
0.5
| 12.7
|
| 98.71
| 775
| 183.7
| 165.3
|
|
0.6
| 15.24
|
| 140
| 1102
| 260.7
| 234.6
|
|
Our Company
Tangshan Junnan Trade Co., Ltd.
located in Tangshan city-the largest scale manufacturing base of steel, with registered capital of 50 million RMB. It's a steel enterprise focusing on both domestic and international trade. The management has been engaged in steel industry for more than 20 years, full of experience for managing team and strong business relations with our valuable customers and factories.
Every staff in the company with more than 8 years international trade experience could provide professional and excellent service, which based on our strong capability in carrying out the contracts and resisting risks that may occur during the contract.
