340cm Single Nozzle Crank Industrial Fabric Making Machine Air Jet Loom for Plain Fiber

US$10,000.00-25,000.00 6 Set (MOQ)

Basic Info.

Model NO.
FA9100
Computerized
Computerized
Precision
High Precision
Certification
ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
Nozzle
1
Shedding
Plain/Cam /Dobby/Jaquard Shedding
Reed Space
190-340cm
Yarn Range
Spun Ne 120 ~ Ne 30
Weft Selection
2-8 Color Pick at Will
Take up and Let off
Roj
Weft Insertion
by 2-8 Colors Pick at Will.
Rpm
700-1000
Electronic Feeder
Roj
Heald Frame
New Light
Solenoid Valve
SMC
Main Nozzle
Jet
Individual Inverter
Including
Wbs
Including
Lubrication
Automatic
Transport Package
Nude Cargo
Specification
340cm
Trademark
FANHUA
Origin
China
HS Code
8446305000
Production Capacity
5000 Sets Per Year

Product Description

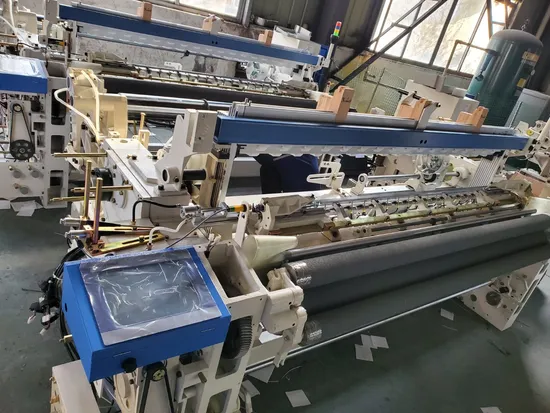

High quality Used Tsudakoma price FA9100-340CM single nozzle plain/crank shedding industrial fabric making machine air jet loom textile machine for plain fiber
1.Production Description
The rigidity of the frame and beam of the FA9100 loom is strengthened, the whole machine has good stability, the beating mechanism is further optimized, the structure is more reasonable, and four connecting rod or six connecting rod can be used to beat the weft. When using six links to beat weft , it can extend the opening time of warp yarn, facilitate weft insertion, and is more suitable for weaving wide width loom fabric, and broadens the weaving scope of looms.
The shedding mechanism of JF9100 model is optional: crank shedding, cam shedding,electronic dobby and jacquard, with electronic let-off, electronic take-up, and weft changing dense weaving function; broken warp self stopping, double weft detection electronic measurement, electronic weft , stranded edge yarn detection and weft cating yarn inspection are all controlled by electronic control, so that the operation is more humanized.
The reasonable beam structure: to further optimize the beam structure, the change of warp tension sensing more sensitive. After the tension roller bracket installed on the outer side of the frame, which is convenient for installation and maintenance. This series of looms have the advantages of high rigid frame structure and so on. It is suitable for weaving high density and fine fabric. It also has the electronic control, which can effectively reduce the probability of weaving defects, such as stop gear, mechanical gear, broken warp, short weft and so on, and improve the weaving quality.
2.Main Feature
item specifications spare parts
Reed Width Nominal Reed Space(CM) 150,170,190,210,230,260,280,300,320,340,360
Useful reed space(CM) Norminal R/S:0-60cm(150-250cm),0-80cm(>280cm)
Working Range Short yarn:me100-ne2.5 Filament:22dtex-1350dtex
Weft Selection 1.2.4 or 6 color
Motor Start Mode Start motor at high speed
Push-button start,stop,f/r slow move
Push-button switch handed
Power 2.8Kw,3.0Kw,3.8Kw,4.5Kw
Weft Insertion Method Main nozzle+swing nozzle+sub nozzle+abnormity lock Weft brake
Control Import High-frequency solenoid valve,computer program control
supporting spray solenoid vavle Supporting spray solenoid valve integrated with flow cavity
Measuring weft storage Electric control loop separate weft storage Ballooning Prevention Device
Beating Beating-Up Motion Double side tank oil-bath type four-bar beating-up motion
Multi-sleysword solid beating-up warp and weft system
Multi supporting base,balance weight
Shedding Crank type flat sheddingg(heald frame 4 to 8);1/1 fabric
Down positive Cam shedding(heald frame 4 to 14);Plain,twill,satin,black out babric
Dobby shedding(heald frame 16 max);Plain,twill,satin or complex design
Electronic Jaquard shedding:1344,2688 lifting hooks
Let off Electric servo continuous let-off Double-warp beam
Twin back beam
Positive or negative let off
flang Dia Φ800mm Φ1000mm
Take up Batching Method Mechanical continuous take-up Electric servo continuous take-up
Batching Method Entrails batching(Max dia:1000mm)
Temple Lower or upper
Selvage Leno yarn by planetary gears
lubrication For main driving parts:oil-bath type,centralized filling oil(grease)
Shutdown device Weft breakage Reflecting double feeler device
Warp breakage Electric warp stop device
others Selvage,yarn end treatment,end-broken stop motion
Shutdown display Screen display,multi-functional shutdown display lights
Weft cutter Mechanical cutter
Electric control system High deficiency,large screen,vga color image display touch human-computer interface

3.Please check our prodction lines as belowed:
4.Our Packing and Shipping:
5.Our textile exhibition in indonesia,in shanghai,china
6.Our certificates
7.FAQ :
1)Are you manufacturer:
Yes, we are manufacturer of water jet loom, air jet loom, rapier looms,twisting machine,etc. textile weaving looms. And at present we also increased the mask making machines series lines.
2)Do you attend the exhibition every year?
Yes, we attend the india, indonesia,Parkistan,shanghai china,Uzbekistan,Turkey etc.textile exhibition every year. 3) Do you have office in foreign market?Yes,we have office in suzhou,china; in india, in indonesia, welcome to visit us.
4)What is the delivery time?
We can deliver the looms within one month 300 sets.
5)Do you already register in India government?
Yes, already become the member of ATUFS india.
6)Do you have aftersales team?
Yes, we will arrange the after sales teams on the door when delivered the looms on your side. Any problems of prompt time is within in 2 hours.
