| US$28,875.00 | 1 set (MOQ) |

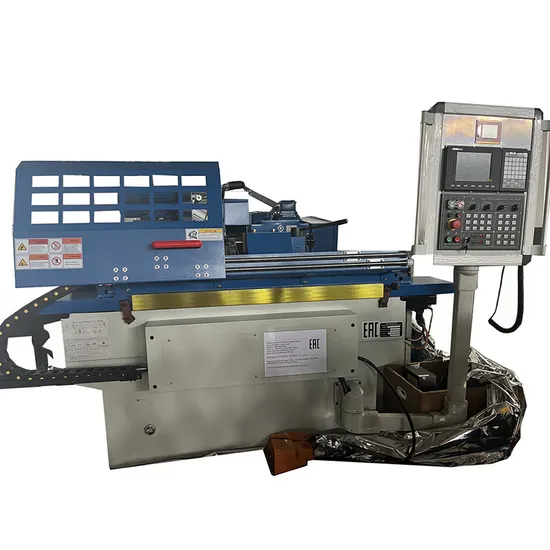

| MKE1420x500 | MKE1420x800 | |
| Height of center mm | 135 | 135 |
| Max grinding diameter(without steady rest) mm | 200 | 200 |
| Max grinding diameter(with steady rest) mm | 60 | 60 |
| Min grinding diameter mm | 8 | 8 |
| Max grinding length mm | 500 | 800 |
| internal grinding diameter range(with steady diameter) mm | 10-90 | 10-90 |
| internal grinding diameter range (without steady rest) mm | 13-100 | 13-100 |
| Max grinding depth mm | 125 | 125 |
| Headstock taper | MT4 | MT4 |
| Max. workpiece weight kg | 50 | 50 |
| tailstock taper | MT4 | MT4 |
| Tailstock spindle stroke | 28 | 28 |
| Min grinding wheel feed mm | 0.001 | 0.001 |
| Headstock swivel range | ±30° | ±30° |
| Grinding spindle speeds rpm | 1670 | 1670 |
| Chuck diameter mm | 200 | 200 |
| Worktable swivel range | -5°~+9° | -3°~+7° |
| Table feed m/min | 0.05-5 | 0.05-5 |
| out disc diameter mm | 400x50x203 280x50x203(min) | 400x50x203 280x50x203(min) |
| Circumferential speeds m/sec | 35 | 35 |
| Work spindle speeds rpm | 25-380 | 25-380 |
| Grinding head trvel mm | 200 | 200 |
| Feed per hand-wheel rotation on wheelhead mm | 0.1mm | 0.1mm |
| Travers per graduation on wheelhead mm | 0.001mm | 0.001mm |
| Max. angle of table swivel | -5°~+9° | -3°~+7° |
| Max. inner disc diameter mm | 50*40*16 | 50*40*16 |
| Min. inner disc diameter mm | 45*35*10 | 45*35*10 |
| total drive capacity KW | 12.6 | 12.6 |
| Motor rating-grinding spindle/hydraulic pump KW | 4/0.75 | 4/0.75 |
| Motor rating of headstock /coolant pump KW | 0.75/0.13 | 0.75/0.13 |
| Motor rating of grinding head moving KW | 10Nm | 10Nm |
| Motor rating of worktable moving KW | 10Nm | 10Nm |
| diamensions (LxWxH) mm | 2500x1600x1700 | 3100x1600x1700 |
| weight kg | 2300 | 2700 |
